Vibration Tables

Freshly filled powder can contain a large volume of air and a loose particle structure. Vibration changes contact forces and allows particles to settle into a denser arrangement. The response evolves with time and may approach a limit rather than continuing linearly.

Process objective

The process may aim to fit a target mass into a package, stabilize the surface, reduce later settlement or improve transport density. The acceptance criterion should be stated as final height, density, package shape or another measurable result.

Mechanism and material response

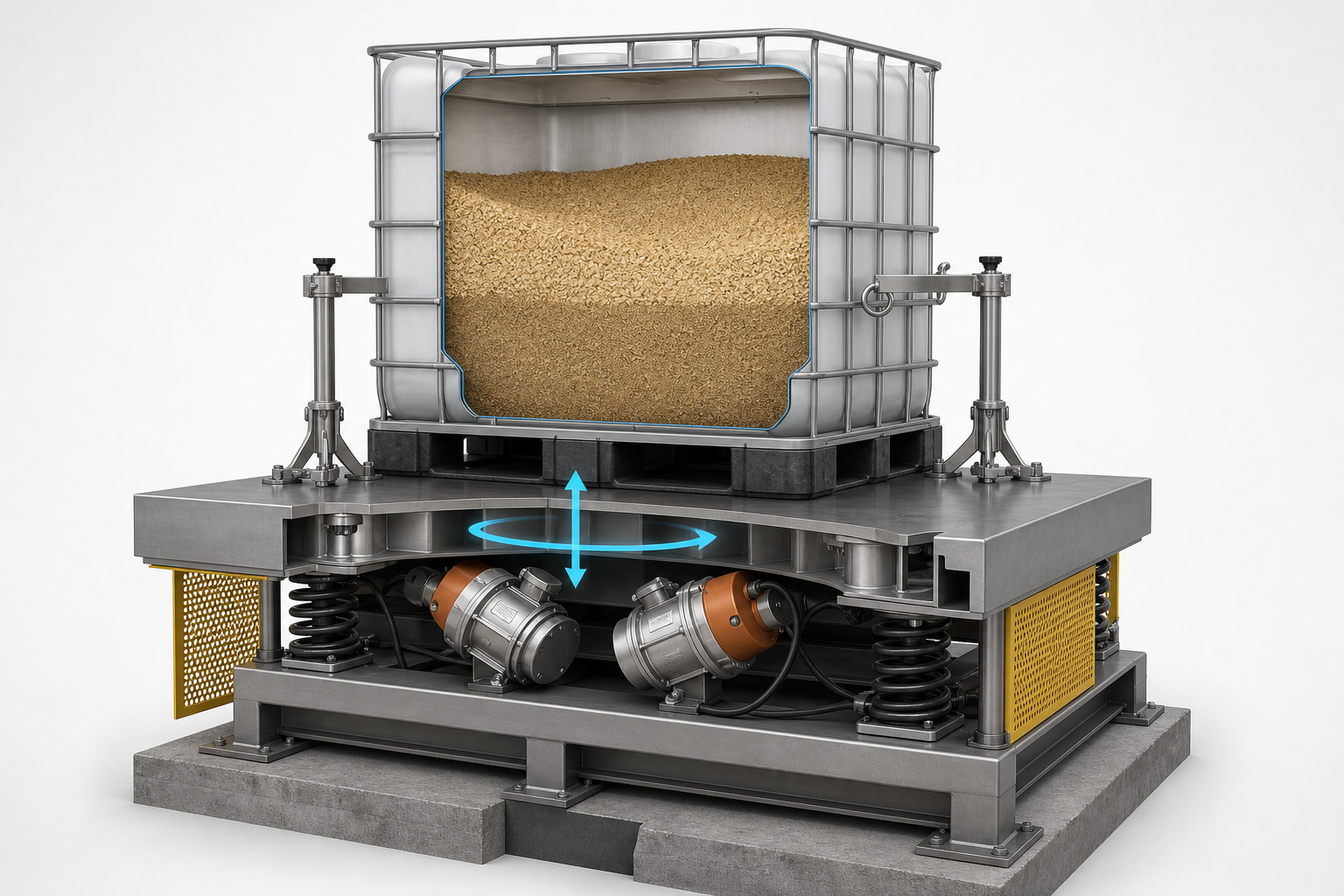

The table transfers cyclic acceleration through the container into the powder bed. Below, near and above gravitational acceleration, different sliding, rearrangement and impact behavior can occur. Container stiffness and restraint influence the transmitted motion.

Powder response depends on particle size distribution, shape, cohesion, moisture, hardness and entrained air. The same machine setting can produce a different result after a raw material or environmental change. Representative trials should therefore measure the required product attributes, not only throughput.

Engineering inputs

• Loose and settled bulk density.
• Particle distribution, cohesion and segregation risk.
• Package strength and support area.
• Fill rate and vibration timing.
• Frequency, amplitude and acceleration range.
• Dust containment and weighing integration.

Quality and scale up

Testing should measure density at relevant locations and after a defined settling period. A denser package may contain a segregated product if fine and coarse particles respond differently. Blend uniformity and particle damage therefore matter where composition is critical.

Scale up must preserve the mechanisms that control the result. Useful similarities may include energy per mass, stress frequency, residence time distribution, bed fill, tip speed or vibration acceleration. The relevant measure depends on the process and should be supported by testing.

Common risks

• Segregation during prolonged vibration.
• Dust release from an open package.
• Package fatigue or seal damage.
• False weighing signals during motion.
• Structural vibration transmitted to nearby equipment.

Use a repeatable sequence linked to fill state rather than an arbitrary running time. Monitor package presence, load, vibration state and completion. A change in compaction time can indicate material variation or mechanical deterioration.

Dust, safety and maintenance

Mechanical energy can release fine dust, heat the product and create ignition sources through impact, friction or damaged bearings. Enclosure, extraction, temperature monitoring, foreign material control and combustible dust protection depend on the material and process assessment.

Guards and energy isolation must prevent access to moving shafts, impact elements and vibrating assemblies. Cleaning and maintenance should address retained material and stored mechanical energy. Wear parts require defined inspection and replacement limits because changing geometry can change the process result.

Commissioning sequence

1. Define the required product distribution or uniformity.
2. Characterize feed variability and difficult conditions.
3. Establish a stable operating window by representative trials.
4. Measure capacity, energy, temperature and product quality together.
5. Verify dust control, guarding and abnormal shutdown.
6. Record baseline wear and process signatures.
7. Set sampling and continued verification requirements.

Sources and further reading

• KONA, Mixing and Segregation in Powders
• Particuology, mixing in a double paddle mixer
• Advanced Powder Technology, tools for particulate mixing research
• KONA, particle size reduction in milling
• KONA, vibration induced densification of bulk solids
• International Journal of Mineral Processing, large scale homogenization

Define the material, process objective, capacity, operating conditions, cleaning needs, safety duties and evidence required before comparing equipment.
