3D Radar Level Measurement

Answer in brief

A 3D radar level system measures distance in several directions and estimates the surface profile of bulk material in a silo. It can improve volume estimation where the surface is uneven, but the result remains a model based on echo interpretation, vessel geometry and material assumptions. Mass calculation additionally depends on representative bulk density.

By Editorial Team · Reviewed July 14, 2026 · Updated July 14, 2026 6 page views

Photorealistic industrial process installation representing 3D Radar Level Measurement.
The image shows 3D Radar Level Measurement. It is manufacturer-neutral and does not depict a verified installation or validated performance result.

How 3D Radar Level Measurement works

Single point level measurement observes one location. That point can sit above a peak or valley created by filling and reclaim. Scanning radar collects returns across a wider surface and reconstructs a profile from several measured directions.

Process purpose

The main value is improved understanding of uneven inventory and flow pattern. A profile can also reveal asymmetric filling or reclaim. It should not be described as direct mass measurement unless vessel calibration and density uncertainty are included.

Bulk solids behavior

Stored powder can form a cone, an inverted cone, an asymmetric surface or several peaks and valleys. The shape changes with filling location, withdrawal pattern, segregation and wall friction. A height at one point is therefore not automatically equal to average level, volume or mass.

Jenike based storage design links measured flow properties, hopper geometry and feeder drawdown. The flow pattern affects live capacity, residence time, segregation and the relationship between surface shape and inventory.

How the technology works

Radar transmits electromagnetic energy and evaluates the time and direction of returned echoes. Signal processing separates surface returns from walls, structures and multiple reflections. The system maps measured points into the known vessel geometry and integrates the estimated occupied volume.

Beam coverage, penetration, weak echoes, dust deposits and internal obstructions influence reconstruction. The surface between measured points is estimated. Accuracy statements therefore need a defined vessel, material, fill range and reference method.

Engineering inputs

  • Vessel geometry and sensor mounting position.
  • Expected surface peaks, valleys and angle.
  • Material echo behavior and dust conditions.
  • Internal structures and filling stream.
  • Required volume and mass uncertainty.
  • Reference measurements for commissioning.

Inventory, control and safety are different duties

A continuous inventory signal supports planning and process control. An independent high level switch may protect against overfill. A low level switch can protect downstream equipment or indicate loss of feed. The required reliability and proof testing can differ for each function.

Remote measurement can reduce the perceived need to inspect material manually, but it does not make silo entry safe. OSHA identifies engulfment, moving equipment and hazardous atmosphere controls for grain storage entry. Similar hazards require assessment wherever people could enter stored bulk solids.

Commissioning and validation

  1. Confirm the vessel geometry and internal obstructions.
  2. Map filling and withdrawal points.
  3. Define whether the output is level, volume, mass or alarm state.
  4. Set realistic uncertainty across expected surface shapes.
  5. Compare readings with an independent reference over several cycles.
  6. Test alarms, signal loss and implausible values.
  7. Repeat validation after material or process change.

Maintenance and diagnostics

Review echo quality, excluded regions and changes in the reconstructed profile. Compare calculated inventory with receipts and withdrawals over time. A persistent balance error can indicate density assumptions, buildup, calibration or flow problems.

Trend review is useful because a sudden change in indicated surface, fill rate or reclaim rate can reveal buildup, a blocked outlet, a changed material or a sensor problem. Automated values should be checked against process knowledge rather than accepted without plausibility review.

Sources and further reading

Engineering visual guide

How the system behaves

These conceptual diagrams connect the operating principle, equipment internals and engineering review points. They are explanatory and not fabrication drawings or a substitute for project-specific calculations.

Operating sequence for 3D Radar Level Measurement, showing Transmit signal, Interact with surface, Receive response, Compensate geometry, Validate reading.

Engineering infographic

Operating sequence

Conceptual operating sequence for 3D Radar Level Measurement; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

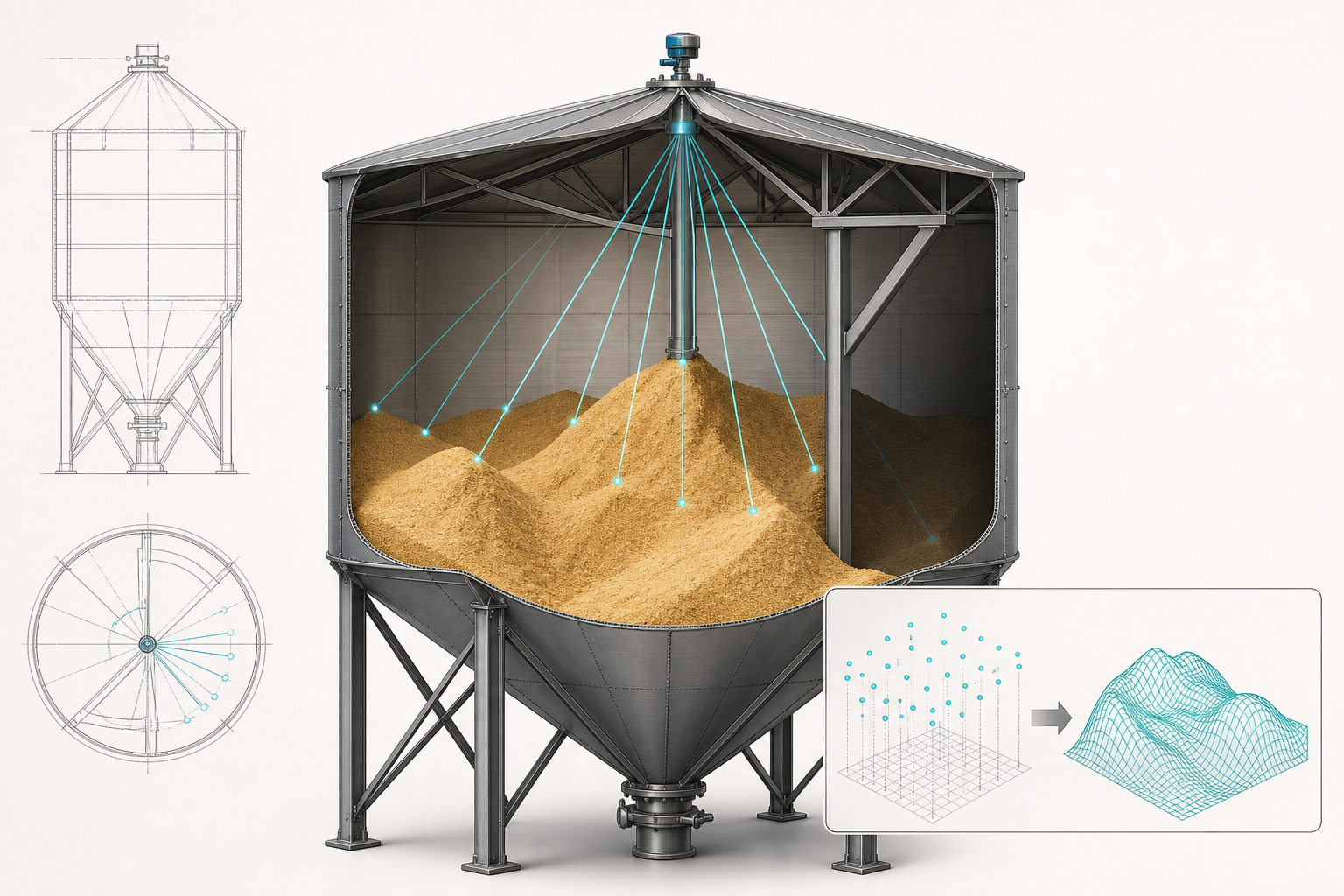

Silo cross-section with scanning radar, multiple echo paths, irregular bulk-solid surface, internal obstruction and reconstructed surface model.

Engineering drawing

From measured surface points to a volume model

Conceptual scanning-radar vessel section showing multiple surface returns, an obstruction and a reconstructed surface. The instrument estimates volume from geometry; mass still requires a representative bulk-density basis.

How to select 3D Radar Level Measurement

Define the output required by operations before comparing scanners. A level alarm, continuous central level and complete surface model are different measurement tasks.

Questions for a supplier

  • Which outputs are measured and which are calculated.
  • Which vessel and material inputs are required for volume or mass.
  • How the installation position affects coverage.
  • How internal structures and filling points are handled.
  • Which process and environmental conditions are supported.
  • How data is displayed, exported and connected to plant systems.
Functional zones for 3D Radar Level Measurement, showing Sensor, Beam path, Material surface, Vessel geometry, Signal processor.

Engineering infographic

Functional zones and interfaces

Conceptual functional zone schematic for 3D Radar Level Measurement; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

Engineering review envelope for 3D Radar Level Measurement, showing Dielectric behavior, Dust, Angle of repose, Internals, Dead zones, Proof test.

Engineering infographic

Engineering review envelope

Conceptual engineering review envelope for 3D Radar Level Measurement; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

Popular on powderbulkvideos.com

Popular 3D Radar Level Measurement videos

View all videos →

Supplier discovery

Companies demonstrating 3D Radar Level Measurement

Frequently asked questions

How does three dimensional radar measure bulk solids in a silo

The scanner collects distance measurements at multiple angles. These points describe the material surface and can be processed into a spatial representation.

Can a radar scanner calculate material volume

A verified system can calculate volume from the measured surface and configured vessel geometry. The accuracy and required inputs must be confirmed for the installation.

Can a radar scanner measure mass directly

Mass is generally a calculated output that also needs suitable material and system inputs. Confirm the calculation method and data requirements with the supplier.

Why use a surface profile instead of one level point

Bulk solids can form uneven surfaces. A profile provides information about peaks and valleys that one measuring direction may not describe.
