Comparison

Radar vs Ultrasonic Level Measurement

Answer in brief

Dust decides it.

Ultrasonic measurement relies on sound travelling through air, and filling dust, temperature layers and foam all attenuate it. Radar is far less affected because it measures with an electromagnetic wave.

Dusty silo, filling during measurement, tall vessel: radar.
Clean liquid or small vessel at modest cost: ultrasonic.
Uneven surfaces and ratholes need 3D scanning rather than any single-point device.

By Editorial Team · Published October 21, 2026 · Updated October 21, 2026

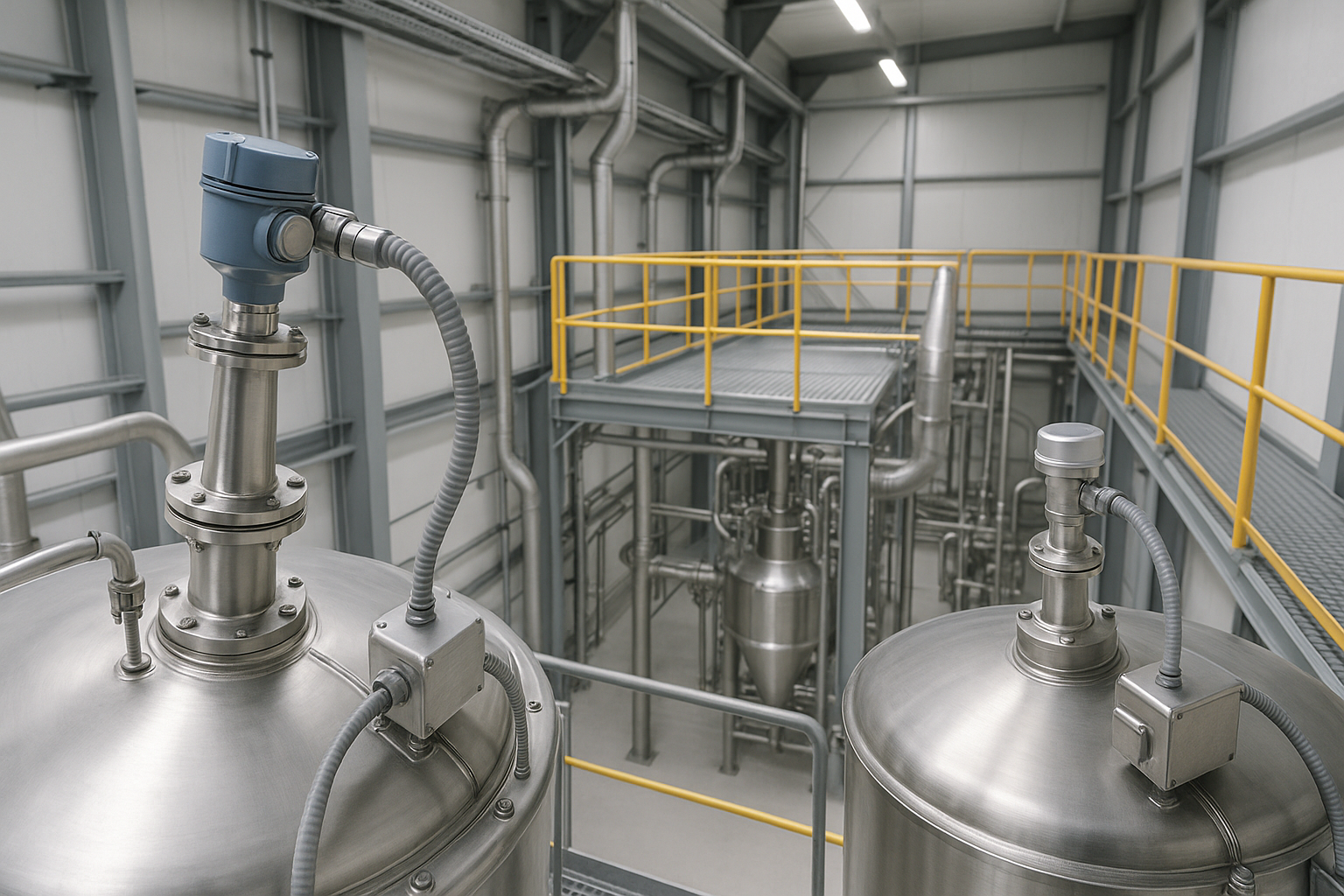

Radar vs Ultrasonic Level Measurement technical comparison illustration

What actually differs

Ultrasonic sensors emit a sound pulse and time its return, so anything that changes the speed or attenuation of sound changes the reading.

Radar sensors emit an electromagnetic wave, which is largely unaffected by dust, temperature gradients and pressure.

In bulk solids a third factor matters more than either: the surface is never flat, so a single-point reading is an estimate of inventory, not a measurement of it.

Decision criteria

Criterion	Radar	Ultrasonic
Dust tolerance	High	Low
Measurement during filling	Usually possible	Often unreliable
Temperature layers	Unaffected	Affects sound speed
Range	Tens of metres	Shorter
Cost	Higher	Lower
Low dielectric powders	Needs care, weak reflection	Not the limiting factor

Where radar is the better choice

Tall silos holding fine powders where filling creates a dense dust cloud.
Vessels with temperature stratification, for example after hot product is filled.
Applications where measurement has to continue during filling.

Low dielectric constant materials such as some plastics and light powders reflect weakly, so antenna selection and mounting position deserve attention.

Partner with powderbulkvideos.com

Put your expertise beside the decisions engineers are making.

Connect a relevant company profile and technical video portfolio with clearly labelled visibility on this topic.

Work with us View partnership options

Where ultrasonic is the better choice

Smaller vessels with clean air and modest accuracy requirements.
Applications where cost per point dominates and dust is minimal.
Liquids, where ultrasonic performs well and the dust objection disappears.

Where neither fits

A single-point device cannot measure inventory in a silo with a rathole, a cone of repose or an uneven surface after side filling.

For inventory accuracy, 3D scanning devices map the surface from several directions and compute a volume, which is a different measurement rather than a better sensor.

For simple full and empty indication, a point level switch is cheaper and more robust than either continuous principle.

What to measure before deciding

Dust density during filling, which is the usual failure condition.
Silo height and the required measuring range.
Material dielectric properties if radar is considered.
Whether the requirement is inventory accuracy or simple level indication.

Frequently asked questions

Why does ultrasonic fail during filling?

The dust cloud attenuates and scatters the sound pulse, so the echo weakens or disappears. Readings often return once the dust settles, which is why the measurement looks reliable on an empty silo and fails in service.

Is radar accurate enough for inventory?

For a single point, yes, but the inventory error comes from the surface shape. Where stock accuracy matters commercially, a scanning device that maps the surface is the appropriate answer.

Do I still need point level switches?

Usually yes, as an independent high level protection. A continuous measurement and a safety switch serve different purposes and should not be combined into one device.
