Answer in brief

Instrumentation and control systems measure material and process conditions, communicate operating status and support automatic decisions in powder and bulk solids plants. Selection starts with the measurement task, process conditions, required response and control architecture.

By Editorial Team · Reviewed July 15, 2026 · Updated July 15, 2026 6 page views

Bulk solids instrumentation and process control with level, weight and flow measurement
The image shows Bulk solids instrumentation and process control with level, weight and flow measurement.

How Instrumentation & Control works

Instrumentation and control turn process conditions into observable information and defined actions. In powder and bulk solids plants, that chain may begin with a level switch, load cell, pressure transmitter, speed monitor or temperature sensor and end with an alarm, interlock, feeder adjustment or operator decision. Reliable control depends on the complete measurement loop, not only the sensing principle.

Begin with the process decision

A useful specification states what must be known and what should happen next. High-level protection in a silo, inventory estimation, loss-in-weight feeder control and filter differential-pressure monitoring have different ranges, response times and consequences of failure. Define the normal operating window, the required uncertainty or repeatability, the response time and the safe state before comparing instruments.

Measurement challenges in bulk solids

Powders rarely present a flat, motionless surface. Filling creates angles, dust clouds and local impact zones; discharge can form funnels or moving surfaces. Material may build up on a probe, change bulk density, generate static charge or load a device mechanically. A measurement principle that works in a clean liquid vessel may therefore need different mounting, protection or signal treatment in a silo.

Weighing systems introduce another boundary. The load path, vessel supports, flexible connections, vibration and material touching adjacent structures can affect the signal. For flow or dosing control, the controller also has to distinguish a real process change from noise and must respond without creating an unstable loop.

From sensor to control action

The design includes the sensor location, range, signal transmission, input scaling, alarm logic, interlocks, actuator response and operator interface. Failure modes such as a broken cable, blocked impulse path, coated probe or drifting zero should produce a detectable state. Critical loops need a documented inspection, calibration or functional-test method that can be carried out under safe conditions.

Data integrity and lifecycle

Measurement records are useful only when the tag, unit, timestamp and operating context are clear. Changes to ranges, alarm limits and control logic should be reviewed and traceable. FDA guidance on continuous manufacturing and process analytical technology illustrates the broader principle: monitoring and control strategies must be linked to process understanding and the decisions they support, rather than adding instruments without a defined purpose.

Selection checklist

  • Material properties, dust, buildup and cleaning conditions.
  • Vessel or machine geometry and credible mounting positions.
  • Normal, startup, shutdown and upset ranges.
  • Required response, repeatability and failure behavior.
  • Hazardous-area, hygiene and environmental requirements.
  • Control-system interface, diagnostics and proof-test method.

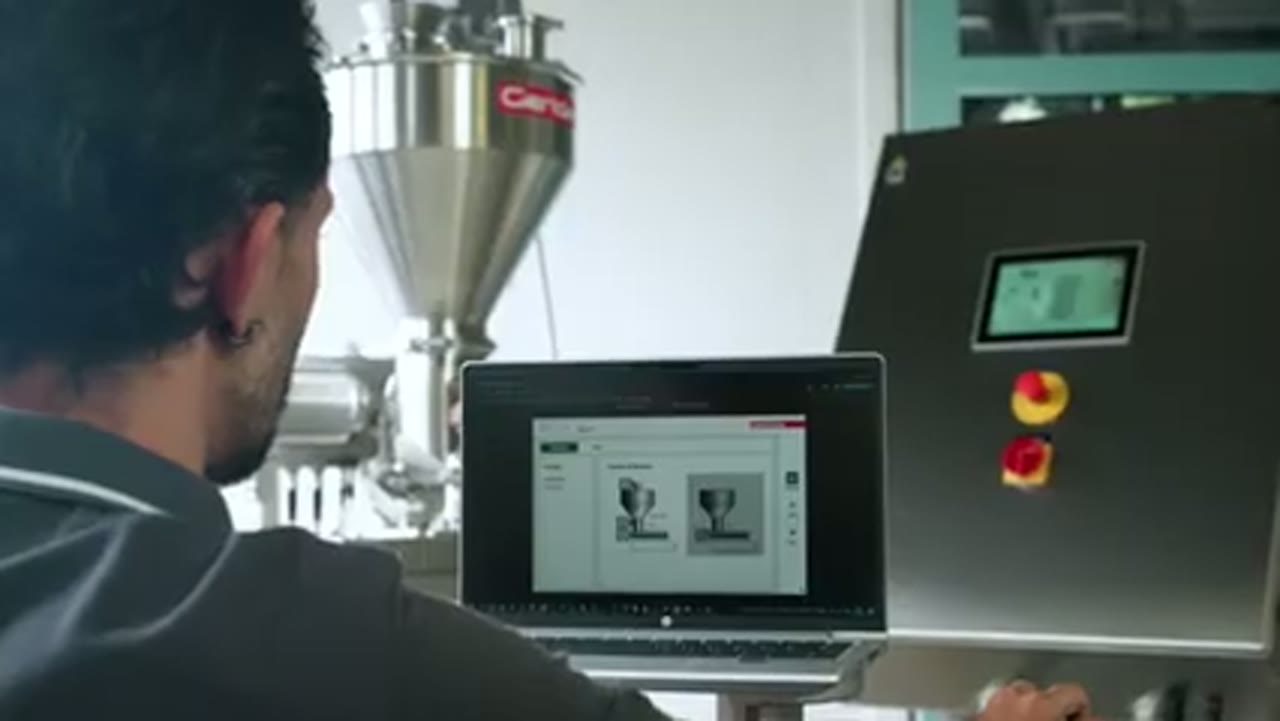

PBV links this technology to relevant companies and videos as examples of available approaches. Those examples do not establish fitness for another process. Final selection requires the current device documentation and verification in the actual measurement and control architecture.

Engineering visual guide

How the system behaves

These conceptual diagrams connect the operating principle, equipment internals and engineering review points. They are explanatory and not fabrication drawings or a substitute for project-specific calculations.

Operating sequence for Instrumentation & Control, showing Define duty, Prepare feed, Execute process, Verify result, Transfer onward.

Engineering infographic

Operating sequence

Conceptual operating sequence for Instrumentation & Control; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

How to select Instrumentation & Control

Define the process decision first. Then document the material, vessel or machine geometry, operating range, dust, temperature, pressure, hazardous area requirements, cleaning needs and the required connection to the plant control system.

Functional zones for Instrumentation & Control, showing Feed interface, Active zone, Containment, Control point, Discharge.

Engineering infographic

Functional zones and interfaces

Conceptual functional zone schematic for Instrumentation & Control; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

Engineering review envelope for Instrumentation & Control, showing Capacity, Material behavior, Energy, Safety, Maintenance, Product quality.

Engineering infographic

Engineering review envelope

Conceptual engineering review envelope for Instrumentation & Control; use it to structure an engineering review, not as a fabrication drawing or project-specific design.
