Impact Crushers

Impact breakage concentrates mechanical energy into very short collisions. Brittle material fractures along its internal weaknesses. Tough or moist feed instead deforms, smears, or passes through with little reduction.

Process objective

Define feed top size, required product distribution, allowable fines, and downstream duty before anything else. Primary crushing, recycling, and fine impact milling place different demands on energy, wear, and containment.

Mechanism and material response

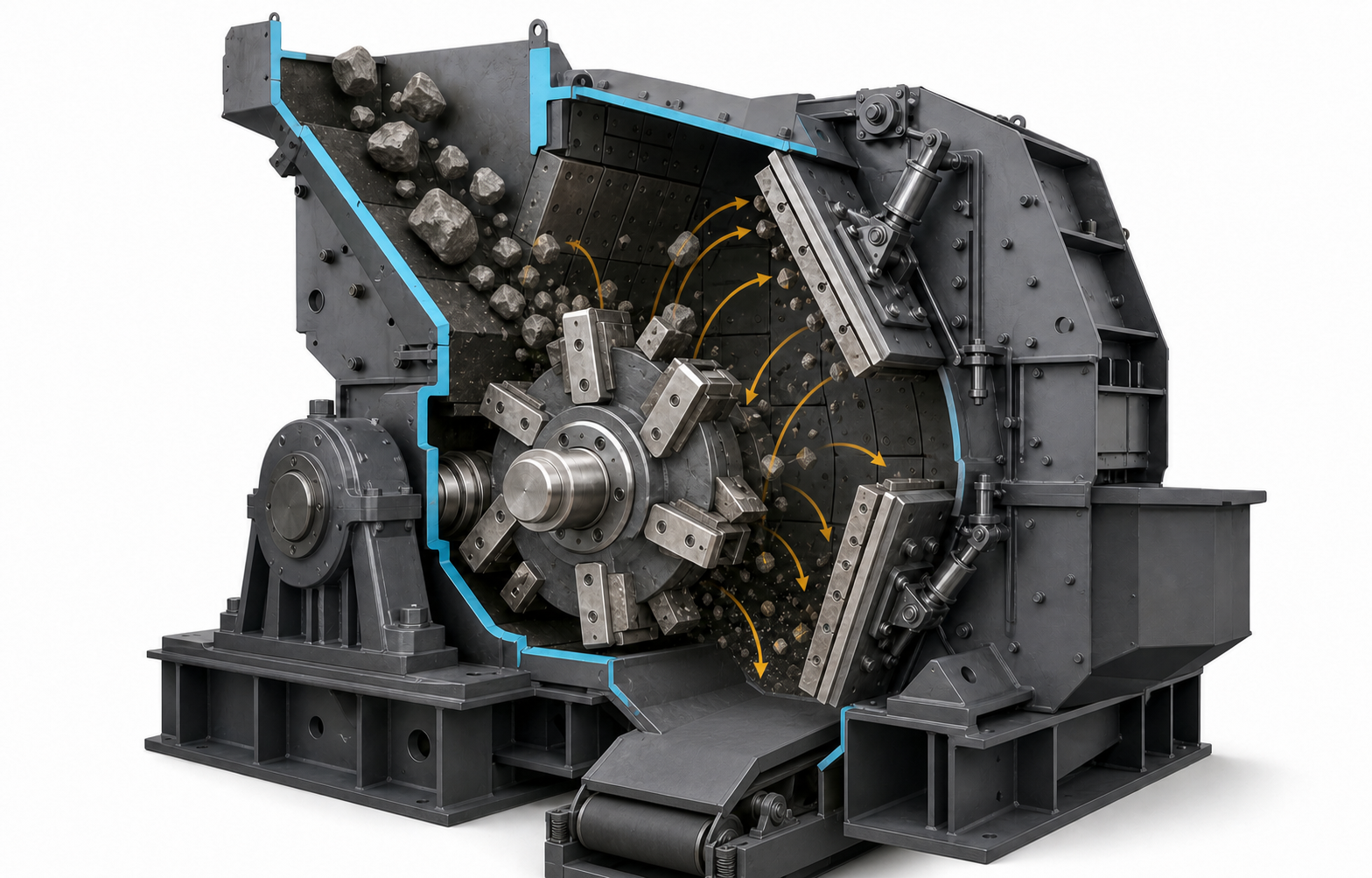

A rotor carries hammers or blow bars that strike the feed and throw fragments toward breaker plates. A particle can take several impacts before it leaves. Machine geometry and the classification path decide how much material stays behind for another collision.

Response depends on particle size distribution, shape, cohesion, moisture, hardness, and entrained air. The same machine setting can give a different result after a raw material change or a wet spell, which is why the product curve, not the throughput figure, is the thing to watch.

Engineering inputs

• Feed size distribution and maximum lump.
• Hardness, abrasiveness, moisture, and toughness.
• Required product curve and fines limit.
• Foreign metal and uncrushable objects.
• Rotor energy, installed power, and throughput.
• Dust enclosure and maintenance access.

Testing and scale-up

Representative crushing trials should measure product distribution, capacity, energy, and wear together. A setting that meets the size specification at low rate can fail once the chamber fills or once wear has opened up the clearances.

Scale-up has to preserve the mechanisms that produced the result. Energy per unit mass, impact frequency, residence time in the chamber, and tip speed are the usual candidates, and which one governs depends on the process. Testing, not analogy, settles that question.

Common risks

• Severe wear changes product size.
• Wet fines build up inside the chamber.
• Uncrushable material causes damage.
• Imbalance produces damaging vibration.
• High energy impact creates dust and noise.

A stable feed rate and an even feed distribution prevent surges. Monitor motor load, vibration, bearing temperature, and product size. Because changing geometry changes the process result, tie wear inspection and replacement limits to measured performance rather than to elapsed hours alone.

Dust, safety, and maintenance

Mechanical energy releases fine dust, heats the product, and can create ignition sources through impact, friction, or a damaged bearing. Enclosure, extraction, temperature monitoring, foreign material control, and combustible dust protection all follow from the material and process assessment.

Guards and energy isolation have to prevent access to moving shafts, impact elements, and vibrating assemblies. Cleaning and maintenance must deal with retained material and stored mechanical energy.

Commissioning sequence

1. Define the required product distribution or uniformity.
2. Characterize feed variability and difficult conditions.
3. Establish a stable operating window by representative trials.
4. Measure capacity, energy, temperature, and product quality together.
5. Verify dust control, guarding, and abnormal shutdown.
6. Record baseline wear and process signatures.
7. Set sampling and continued verification requirements.

Sources and further reading

• KONA, vibration induced densification of bulk solids
