Comparison

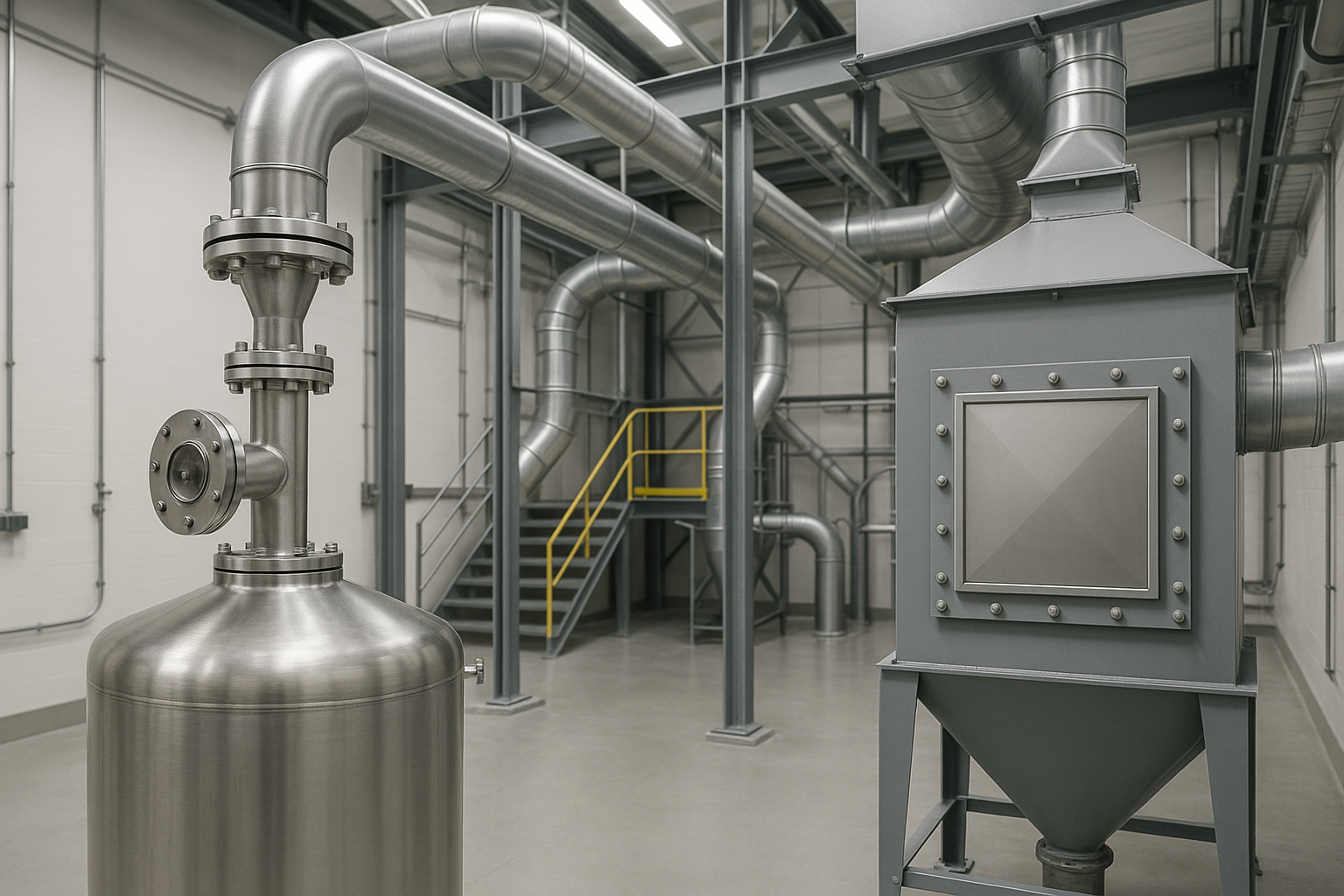

Rupture Disc vs Explosion Vent Panel
Answer in brief
They solve different problems and are not interchangeable.
A rupture disc protects a vessel against a process overpressure, usually from gas or liquid, and is sized by relieving capacity. An explosion vent panel protects a vessel against a dust or gas deflagration and is sized by vent area for a given reduced explosion pressure.
- Process overpressure, slow pressure rise: rupture disc.
- Dust deflagration, pressure rise in milliseconds: vent panel.
- Using one in place of the other means the vessel is not protected.
By Editorial Team · Published October 21, 2026 · Updated October 21, 2026
What actually differs
Both devices are non-reclosing openings that burst at a defined pressure, which is where the confusion starts.
The difference is the event they are designed for and therefore the way they are sized.
Rupture disc: protects against a pressure excursion in a closed system, sized from the required relieving capacity for the fluid, the set pressure and the downstream route.
Explosion vent panel: protects against a deflagration inside the vessel, sized from vessel volume, the dust explosion characteristics and the pressure the vessel can withstand.
A deflagration reaches its peak in milliseconds, so the panel has to be large in area and extremely fast to open. A process relief event develops far more slowly and needs flow capacity rather than area.
Decision criteria
| Criterion | Rupture disc | Explosion vent panel |
|---|---|---|
| Event | Process overpressure | Dust or gas deflagration |
| Pressure rise | Seconds to minutes | Milliseconds |
| Sizing basis | Relieving capacity at set pressure | Vent area for reduced explosion pressure |
| Typical opening pressure | From fractions of a bar to very high | Low, commonly a fraction of a bar |
| Typical location | Reactors, pipelines, pressure vessels | Filters, silos, mills, dryers |
| Discharge route | To a safe place or a relief system | To a safe outdoor area or a flameless device |
Where the rupture disc is the right choice
Choose a rupture disc where a defined pressure must be relieved from a closed process volume.
- Protection of a reactor or heat exchanger against thermal expansion or a blocked outlet.
- Protection of a relief valve against a corrosive or fouling medium.
- Applications where leak tightness up to the set pressure matters.
Partner with powderbulkvideos.com
Put your expertise beside the decisions engineers are making.
Connect a relevant company profile and technical video portfolio with clearly labelled visibility on this topic.
Where the vent panel is the right choice
Choose a vent panel where a combustible dust cloud can exist inside an enclosure.
- Dust collectors, which are the most common protected vessel.
- Silos, mills, mixers, dryers and bucket elevators.
- Any enclosure where the explosion characteristics of the dust have been measured.
Venting only works if the vented material can leave into a safe area. Indoors, a flameless device or suppression takes its place.
Where neither fits
Neither device isolates a connected vessel.
A deflagration travels along ducting into the next vessel, and venting one end does nothing about that. Isolation is a separate measure with its own hardware.
Neither device substitutes for ignition source control, and neither helps if the vessel's strength was never established.
What to measure before deciding
- Which event is credible: process overpressure, deflagration, or both.
- Explosion characteristics of the actual dust, measured on the collected fines.
- Enclosure strength, since it determines the reduced explosion pressure target.
- Where the discharge can safely go.
Frequently asked questions
Can a rupture disc be used as an explosion vent?
Only where it is explicitly rated and sized as a deflagration vent. A disc sized for process relief has far too little area to limit the pressure rise of a dust deflagration.
Does a vent panel need to be replaced after it opens?
Yes. Both devices are non-reclosing and have to be replaced after an event, together with an investigation of what caused it.
Can a vented vessel stand indoors?
Not with a conventional panel, because the vented flame and pressure would enter the room. Indoors the usual answers are a flameless venting device or explosion suppression.
