Contained Powder Sampling

Contained sampling is a process operation, not a laboratory accessory

A sample is useful only when it represents the material state that matters to the decision.

The sampler must therefore be designed around the process question, the powder’s segregation behaviour and the exposure limit. A device that contains dust well but consistently captures only fines is not a successful sampler.

Define the sampling objective first

Identity testing: The plan may require samples from specified containers or locations to demonstrate that the correct material entered the process.

Blend uniformity: FDA guidance expects scientifically sound sampling that can detect non-uniformity. The location, timing and number of samples must relate to the mixing and discharge mechanism.

Process monitoring: Samples may track moisture, particle size, potency or contamination during a run. A trend sample does not automatically replace a release sample.

Investigation: A targeted sample taken near a suspected dead zone answers a different question from a statistically representative lot sample.

Where the sample is taken changes what it means

Static bed sampling

Thieves and lances reach into a drum, bag or vessel, but insertion can disturb layers and expose the operator when the boundary is opened.

Long cohesive beds are difficult to sample through their full depth. A few convenient top samples can miss segregation or a dense heel.

Cross-stream sampling

A cutter passing through a falling stream can collect increments across the stream profile. The cutter opening, speed and frequency must be suitable for the largest particles and flow rate.

The transfer point must remain representative. Sampling only one edge of a segregated stream introduces systematic bias.

In-line and valve-based sampling

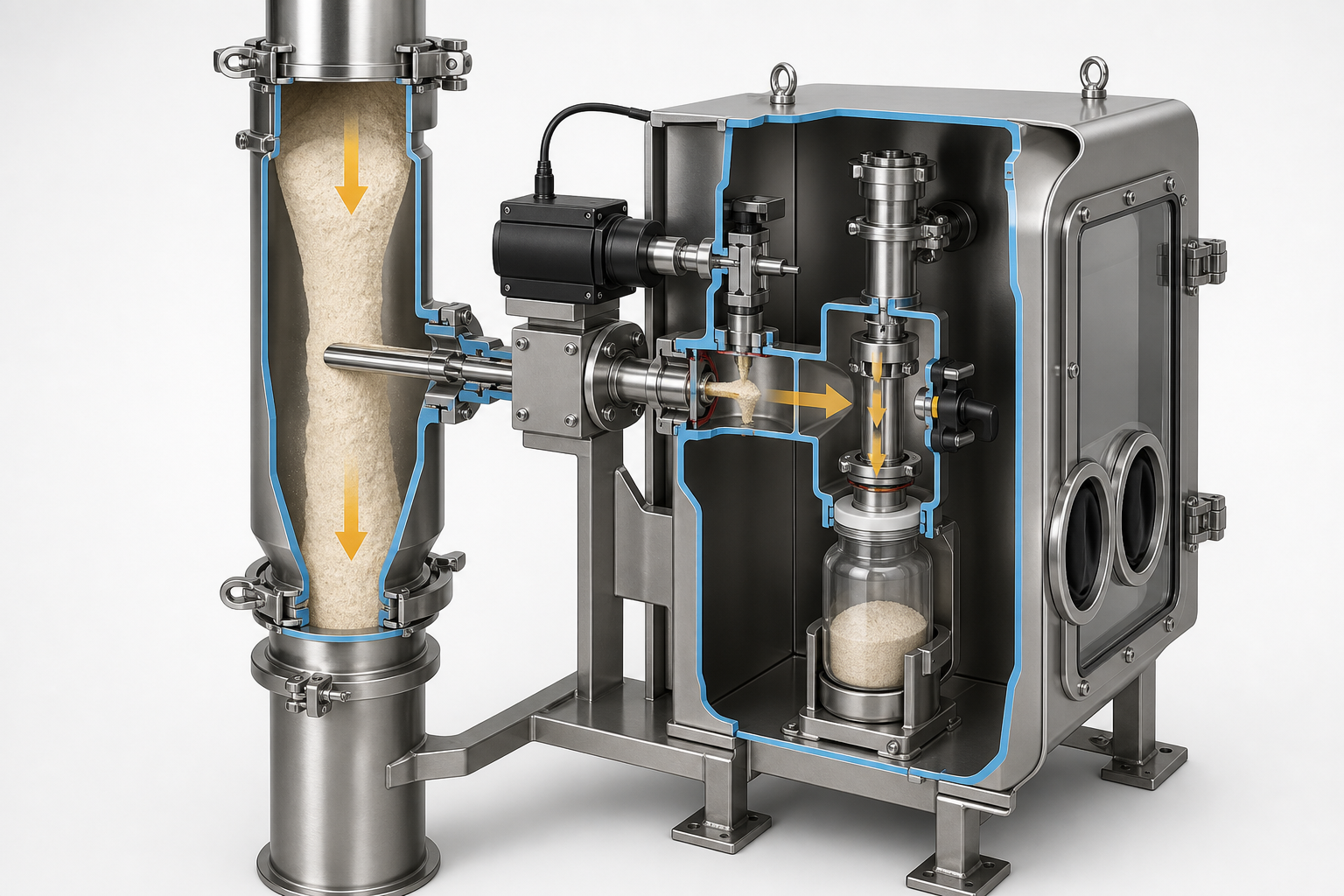

A fixed sampler on a chute, pipe or vessel can preserve a closed boundary and support repeatable timing.

Its pocket, auger or probe still has to empty completely, avoid preferential filling and resist blockage. A purge can help clear the mechanism, but purge gas must not alter the sample or push powder into the room.

Build the containment boundary around the hazard

NIOSH’s hierarchy of controls places engineering controls ahead of administrative measures and personal protective equipment.

For potent, sensitising or toxic powders, the sample path should remain enclosed from process connection to sealed sample container. Typical elements include a contained valve, docking sleeve, split interface, local extraction and a closed transfer into the laboratory container.

The occupational exposure limit is not a sampler specification by itself. The complete task must be assessed, including connection, filling, disconnection, cleaning, waste handling and a credible spill.

Representative sampling and containment can conflict

A very small or restrictive port may improve enclosure but exclude coarse particles or clog with cohesive powder.

A high extraction airflow may capture escaped dust but also remove fines from the sample. A purge may clear residue but dilute moisture or volatile measurements.

These conflicts should be resolved by trials with representative material, not by assuming that a closed appearance guarantees correct sampling.

Cleaning and cross-contamination control

Product-contact pockets, seals, threads and dead legs must be visible or demonstrably cleanable.

FDA Q7 calls for equipment to be cleaned, stored and, where appropriate, sanitised to prevent contamination or carry-over that changes material quality.

Define whether the sampler is cleaned in place, removed to a wash area or replaced as a disposable product-contact assembly. Document the sequence for making the process safe before opening it.

Instrumentation and process integration

Useful interlocks confirm process pressure, sampler home position, receiving-container connection and extraction availability before a sample stroke.

Record the lot, sampling point, process state, time and operator or automated cycle ID. Data integrity matters because a perfectly collected sample loses value when its origin is ambiguous.

Process analytical technology may reduce some manual sampling, but an analyser needs its own representative interface, calibration and maintenance strategy.

Commissioning and acceptance

• Challenge representativeness across expected flow rates, fill levels and segregation states.
• Measure task-based exposure during normal sampling, disconnection, cleaning and an upset simulation.
• Check recovery of coarse and fine fractions against an accepted reference method.
• Verify that residual material cannot contaminate the next sample or batch.
• Test loss of extraction, blocked mechanism, pressure at the port and incorrect container connection.

Contained sampling belongs in the wider high-containment powder-handling strategy. The sampler, room controls and operating method must be qualified as one task.
