Vibrating Trough Conveyors

Answer in brief

A vibrating trough conveyor moves bulk solids through repeated controlled motion of a pan or tube. Conveying behavior depends on vibration frequency, amplitude, direction, trough geometry and the frictional and impact response of the material. It can provide enclosed, gentle or hygienic transfer, but capacity and product behavior require representative testing.

By Editorial Team · Reviewed July 14, 2026 · Updated July 14, 2026 2 page views

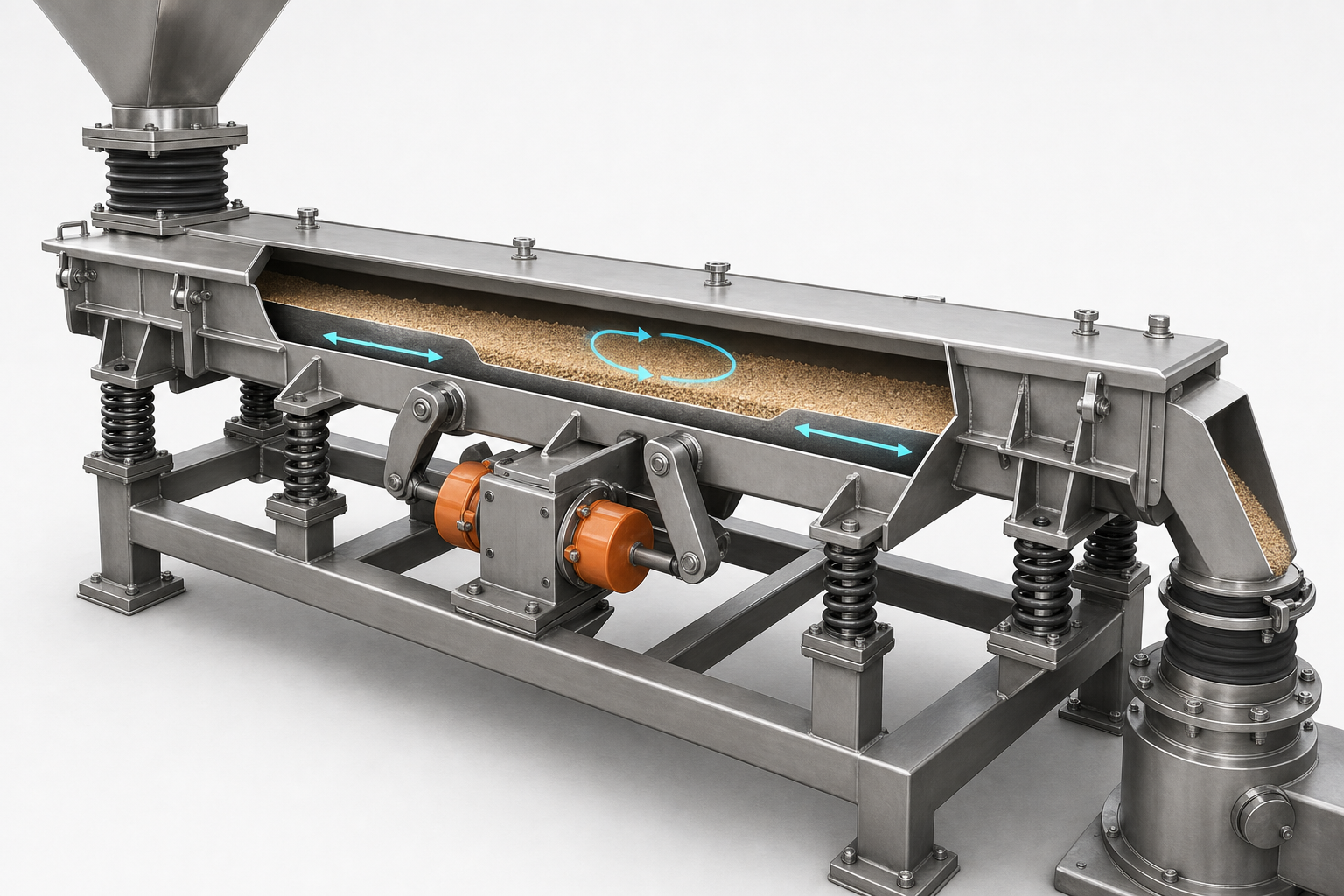

Photorealistic industrial process installation representing Vibrating Trough Conveyors.
The image shows Vibrating Trough Conveyors. It is manufacturer-neutral and does not depict a verified installation or validated performance result.

How Vibrating Trough Conveyors works

The trough follows a cyclic motion that alternately accelerates, releases and advances the material. Depending on the motion and product, particles can slide, hop or move as a shallow bed. The drive, springs, support structure and trough form one dynamic system.

How the operation works

Stroke and frequency influence particle motion and capacity. Trough slope, bed depth and surface condition also matter. A setting that conveys one granular material smoothly can compact, segregate or stall a cohesive powder.

Feed consistency affects performance because an excessive bed can damp motion while a very shallow bed can increase particle impact. Flexible inlet and outlet connections must accommodate movement without imposing restraint or transmitting excessive vibration to adjacent equipment.

Engineering inputs

  • Material flowability, particle size and bulk density.
  • Attrition, segregation and impact sensitivity.
  • Required capacity and bed depth.
  • Trough length, slope and enclosure.
  • Cleaning, hygiene and drainage requirements.
  • Foundation loading and vibration isolation.

Capacity alone is not a sufficient design basis. The system must work across the expected material range, including changes in moisture, fine content, bulk density and particle shape. Startup, normal duty, turndown, interruption and clearing are separate operating cases.

Control of dust and displaced air

A covered trough can contain the material path, but openings and flexible connections remain potential release points. Extraction must account for displaced air without pulling fine material. Product testing should observe whether vibration increases airborne fines or segregation.

Research on transfer chutes shows that material trajectory and entrained air influence fugitive dust. EPA guidance also treats loading, unloading and storage as distinct emission activities. Effective control therefore begins by reducing uncontrolled drop and air displacement before collection air is added.

Reliability and failure modes

  • Resonance or structural fatigue.
  • Broken springs or loose fasteners.
  • Material buildup that changes dynamic behavior.
  • Cracked flexible connections.
  • Capacity loss after material moisture changes.

Inspection should focus on changing conditions rather than waiting for lost capacity. Deposits, wear patterns, damaged seals, changed vibration and rising dust indicate that material flow or containment has moved away from the intended state.

Safety and access

The moving trough and drive create pinch and stored spring energy hazards. Guards, isolation and controlled release of stored energy are required for inspection. Structural condition and fastener integrity should be included in routine checks.

Isolation for maintenance, guarding, safe access and emergency response must be designed into the arrangement. Where combustible dust can occur, ignition control and explosion risk require a separate documented assessment of the complete connected process.

Commissioning and acceptance

  1. Confirm the actual material range and operating cases.
  2. Measure capacity and observe flow at every transfer.
  3. Check dust release, spillage and displaced air under representative duty.
  4. Verify alarms, interlocks and safe shutdown.
  5. Record baseline wear, vibration and inspection points.
  6. Train operators in normal operation, clearing and change control.

Sources and further reading

Engineering visual guide

How the system behaves

These conceptual diagrams connect the operating principle, equipment internals and engineering review points. They are explanatory and not fabrication drawings or a substitute for project-specific calculations.

Operating sequence for Vibrating Trough Conveyors, showing Pickup, Meter solids, Transport, Separate gas, Discharge.

Engineering infographic

Operating sequence

Conceptual operating sequence for Vibrating Trough Conveyors; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

How to select Vibrating Trough Conveyors

Define whether the equipment must transport, meter or distribute the material. Then document the complete route and the required interface at the inlet and outlet.

Selection inputs

  • Material identity and verified flow behaviour.
  • Required flow and operating pattern.
  • Conveying distance and permitted installation height.
  • Open trough or enclosed tube requirement.
  • Required direction and discharge arrangement.
  • Dust containment and cleaning needs.
  • Vibration isolation and support conditions.
  • Control interface with upstream and downstream equipment.

Use current supplier data for capacity, dimensions and material compatibility. Do not transfer values from one conveyor design to another.

Functional zones for Vibrating Trough Conveyors, showing Feed interface, Conveying line, Gas path, Receiver, Filter.

Engineering infographic

Functional zones and interfaces

Conceptual functional zone schematic for Vibrating Trough Conveyors; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

Engineering review envelope for Vibrating Trough Conveyors, showing Material state, Velocity, Pressure, Wear, Filter load, Restart.

Engineering infographic

Engineering review envelope

Conceptual engineering review envelope for Vibrating Trough Conveyors; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

Popular on powderbulkvideos.com

Popular Vibrating Trough Conveyors videos

View all videos →

Supplier discovery

Companies demonstrating Vibrating Trough Conveyors

Frequently asked questions

How do vibrating trough conveyors move bulk materials?

A vibration drive creates controlled motion in the trough. This motion advances the material in repeated small movements along the conveying surface.

What is the difference between a trough and a tubular feeder?

A trough has an open conveying surface. A tubular feeder encloses the material path more completely. The required containment and cleaning access influence the choice.

Can a vibrating conveyor also meter material?

Vibrating equipment can support transport and controlled dosing when the drive, controls and process interfaces are designed for that task.

What information is needed to select a vibrating trough conveyor?

Define the material, required flow, distance, trough form, direction, containment, cleaning, support conditions and control interfaces.
