Diverter Valves

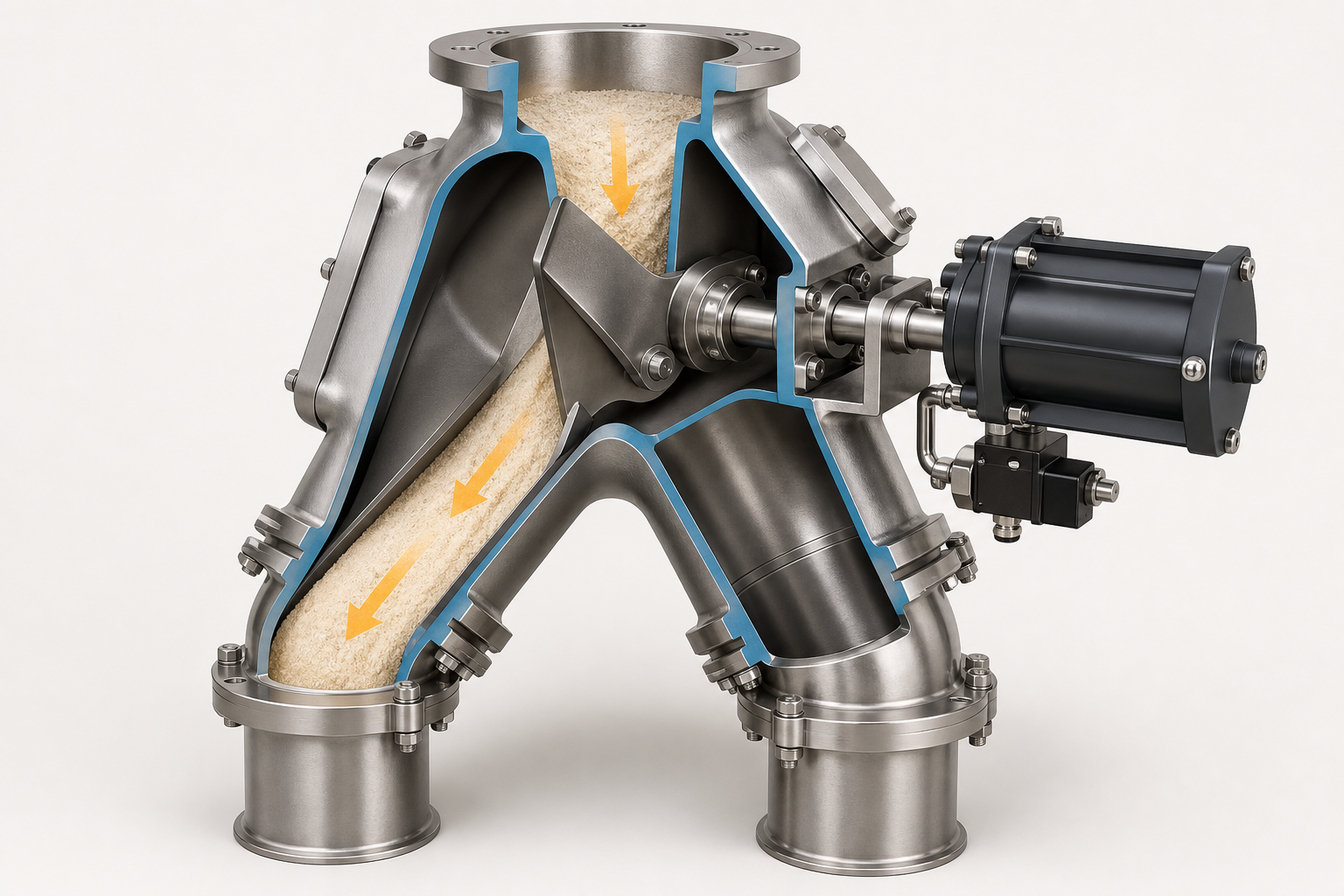

Diverters change the process destination. A flap, blade, tube or chute moves to align the inlet with the selected outlet. The internal geometry should guide the stream without creating an impact pocket or an unintended ledge.

Function in the process

Gravity diverters primarily manage falling solids. Pneumatic diverters also contain gas pressure and must control leakage between branches. Some designs switch only after flow stops, while others are intended for defined switching conditions.

The inlet stream can apply impact and pressure to the moving element. Material trapped at the sealing interface can prevent complete travel. A downstream branch may also have a different pressure or contamination status.

Material behavior comes first

Bulk solids do not behave like liquids. Cohesion, wall friction, compressibility, permeability, particle shape, moisture and storage time influence whether material reaches the device and how it passes through. Research on food powders shows that particle size and bulk density alone cannot reliably predict flow or wall friction. Representative flow testing is therefore important when failure has serious consequences.

Engineering inputs

• Gravity or pneumatic service.
• Pressure, vacuum and gas velocity.
• Particle size, abrasion and degradation risk.
• Permitted cross leakage between routes.
• Switching frequency and flow state.
• Position feedback and cleanability.

The upstream bin, outlet and downstream equipment must be designed with the device. A feeder cannot correct a hopper that forms a stable arch. A shutoff gate cannot control flow reliably when it is used as a metering device. A pressure boundary cannot be assumed from the equipment name.

Capacity and control

The next process should not start until route position is proven. Where contamination matters, sequence controls may also include purge or line clearance. A timeout or contradictory position signal should stop material admission.

Controls should distinguish commanded position or speed from actual process performance. Position feedback, motor load, mass flow, weight change or downstream pressure can reveal different failure modes. The useful signal depends on the duty.

Common failure modes

• Material trapped under the blade or flap.
• Erosion at the impact zone.
• Leakage into the inactive branch.
• Actuator failure or incomplete travel.
• Buildup changes the stream trajectory.

Inspection should establish baseline leakage, wear, torque, noise and cycle time. A trend away from that baseline can identify deterioration before capacity is lost or a seal fails.

Safety and maintenance

Route changes can send material to an unavailable or open receiver. Interlocks should confirm destination readiness. Maintenance isolation must address material from every connected branch and any retained pressure.

Moving rotors, blades and actuators require guarding and energy isolation. Stored bulk material can move after a drive stops. Pressure, vacuum and combustible dust hazards must be included in the safe work method for opening or removing the device.

Selection and acceptance sequence

1. Define the material range and process duty.
2. Confirm bin flow and outlet geometry.
3. Set capacity, pressure and leakage requirements.
4. Review wear, cleaning and contamination risks.
5. Select instrumentation and failure response.
6. Test the complete interface under representative conditions.
7. Document maintenance limits and spare parts.

Sources and further reading

• AIME, Selection and Sizing of Feeders, Bins and Stockpiles
• Journal of Food Engineering, powder flow measurement and hopper design
• Particulate Science and Technology, rotary valve leakage
• AIChE, handling rotary airlock leakage
• OSHA, machinery and conveyor safety context

Draw the material route before selecting a diverter. Mark every inlet, outlet, permitted direction and condition in which a path must remain closed.

Selection inputs

• Material identity, particle size and verified flow behaviour.
• Gravity flow or pneumatic conveying condition.
• Diverting, converging or both functions.
• Number of destinations and line orientation.
• Operating frequency and permitted switching condition.
• Cross contamination and cleanability requirements.
• Abrasion, wear protection and maintenance access.
• Actuation and position confirmation.

Use the current model source for size, pressure, temperature and material compatibility. These values cannot be transferred between diverter families.
