Valves, Gates & Airlocks

The word valve can hide several different engineering requirements. Solids isolation, flow regulation, route selection and pressure separation place different loads on the moving element and seals.

Function in the process

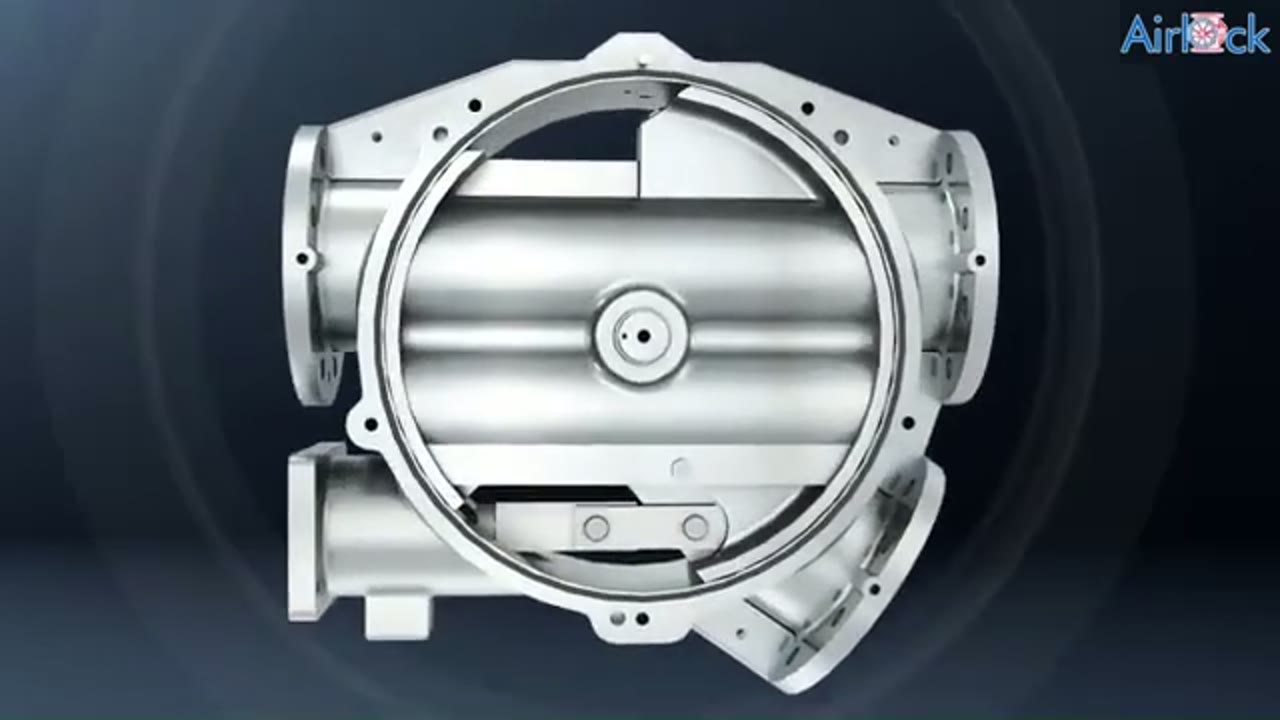

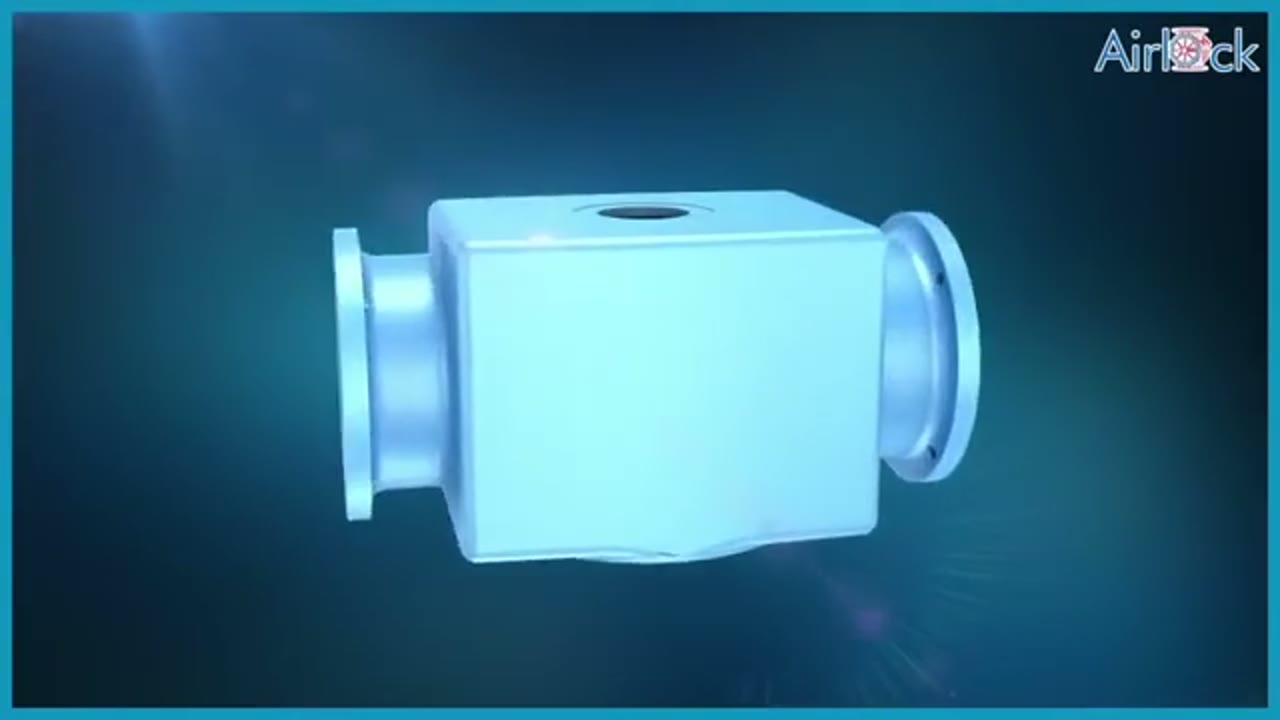

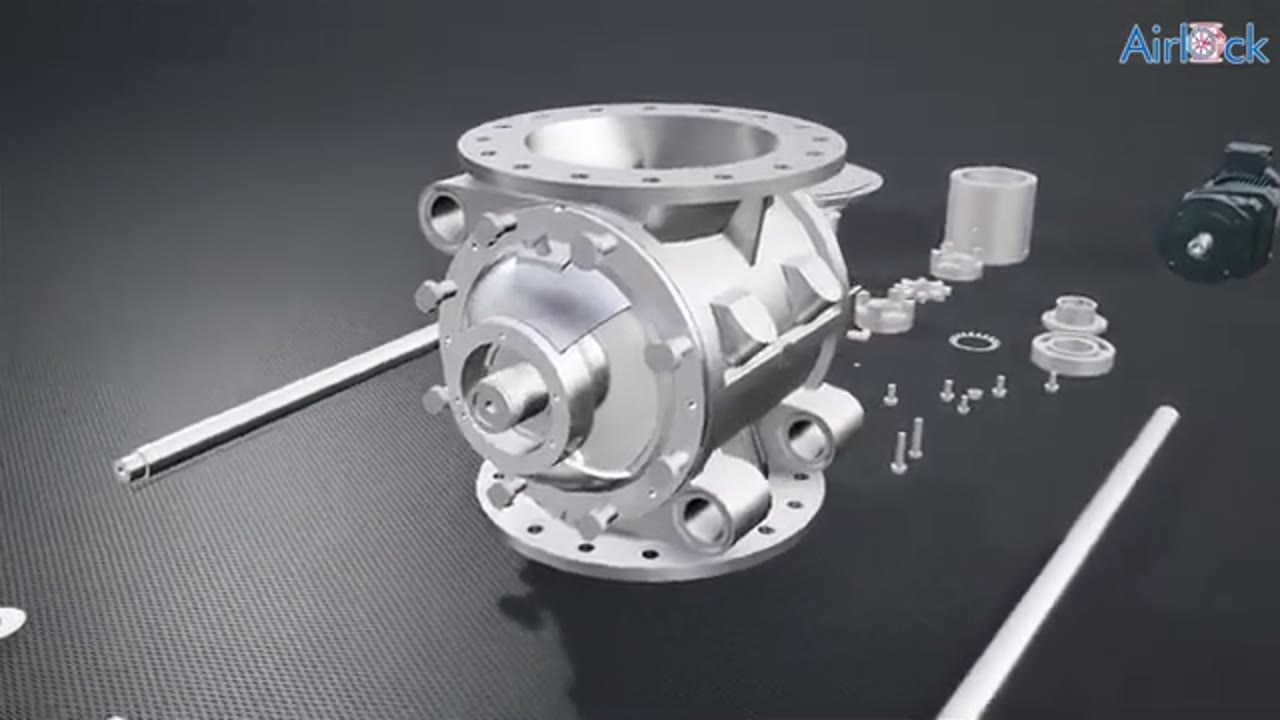

A slide gate clears or blocks an opening. A diverter moves the stream between outlets. A rotary device repeatedly fills and empties pockets while limiting gas flow. Some devices can perform more than one function, but only within validated limits.

The device connects stored solids to another pressure, process or route. Material can compact above it, lodge in the closing path or abrade the sealing surfaces. Pressure can drive gas and fines through every clearance.

Material behavior comes first

Bulk solids do not behave like liquids. Cohesion, wall friction, compressibility, permeability, particle shape, moisture and storage time influence whether material reaches the device and how it passes through. Research on food powders shows that particle size and bulk density alone cannot reliably predict flow or wall friction. Representative flow testing is therefore important when failure has serious consequences.

Engineering inputs

• Required isolation, metering, diversion or airlock function.
• Particle size, hardness, cohesion and temperature.
• Normal and differential pressure.
• Acceptable gas and dust leakage.
• Cycle frequency and required position proof.
• Cleaning and cross contamination requirements.

The upstream bin, outlet and downstream equipment must be designed with the device. A feeder cannot correct a hopper that forms a stable arch. A shutoff gate cannot control flow reliably when it is used as a metering device. A pressure boundary cannot be assumed from the equipment name.

Capacity and control

A command to close does not prove isolation. Position switches confirm motion, while pressure, flow or downstream state may be needed to confirm the process result. The control system should define the response to incomplete travel or loss of actuation.

Controls should distinguish commanded position or speed from actual process performance. Position feedback, motor load, mass flow, weight change or downstream pressure can reveal different failure modes. The useful signal depends on the duty.

Common failure modes

• Particles trapped in the closing path.
• Seal wear and rising leakage.
• Actuator torque insufficient for compacted material.
• Incorrect route after incomplete diversion.
• Buildup that prevents full opening.

Inspection should establish baseline leakage, wear, torque, noise and cycle time. A trend away from that baseline can identify deterioration before capacity is lost or a seal fails.

Safety and maintenance

A device used for process control is not automatically suitable as a personnel isolation barrier. Safe maintenance requires a verified isolation method appropriate to gravity, pressure and the material hazard.

Moving rotors, blades and actuators require guarding and energy isolation. Stored bulk material can move after a drive stops. Pressure, vacuum and combustible dust hazards must be included in the safe work method for opening or removing the device.

Selection and acceptance sequence

1. Define the material range and process duty.
2. Confirm bin flow and outlet geometry.
3. Set capacity, pressure and leakage requirements.
4. Review wear, cleaning and contamination risks.
5. Select instrumentation and failure response.
6. Test the complete interface under representative conditions.
7. Document maintenance limits and spare parts.

Sources and further reading

• AIME, Selection and Sizing of Feeders, Bins and Stockpiles
• Journal of Food Engineering, powder flow measurement and hopper design
• Particulate Science and Technology, rotary valve leakage
• AIChE, handling rotary airlock leakage
• OSHA, machinery and conveyor safety context

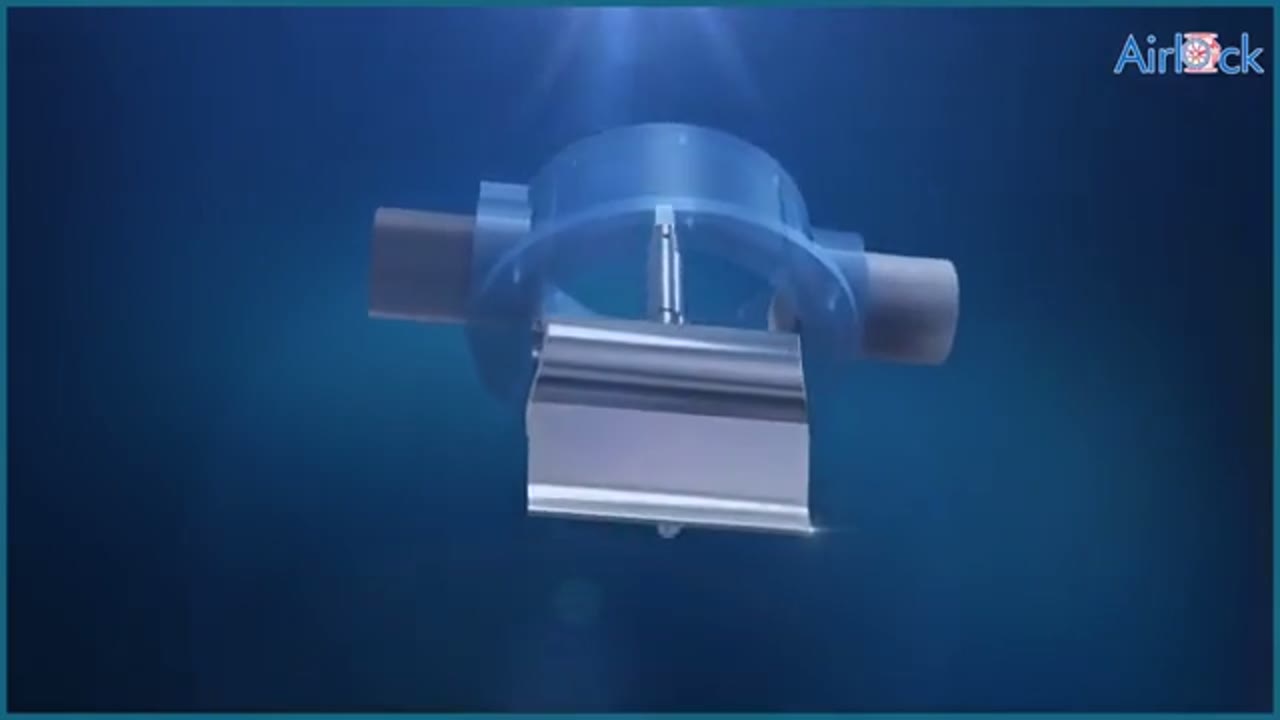

Write the required process function before choosing a valve family. State whether the equipment must isolate, feed, meter, divert, converge or support a weighing sequence.

Selection inputs

• Material identity and verified flow behaviour.
• Gravity flow or pneumatic conveying condition.
• Required pressure boundary.
• Number and direction of inlets and outlets.
• Required flow control and operating sequence.
• Cleaning and contamination control needs.
• Wear, inspection and maintenance access.
• Actuation, position feedback and control interface.

Confirm suitability and all technical values with the supplier for the selected model and complete operating duty.
