Double-Shaft Mixers
Answer in brief
A double shaft mixer uses two coordinated shafts with paddles or other tools to move particles through overlapping mixing zones. It can provide rapid convective mixing and support continuous or batch duties. Mixer selection requires evidence for blend uniformity, segregation, fill level, residence time, discharge, wear and cleaning with the actual formulation.
By Editorial Team · Reviewed July 14, 2026 · Updated July 26, 2026 32 page views
Powder mixing is the controlled redistribution of components. A good result depends on creating enough relative particle motion while avoiding mechanisms that separate particles by size, density or shape.
Process objective
Define the required uniformity, sample scale and acceptable mixing time. A blend can appear uniform at a large sample size while small doses remain variable. The process after the mixer can also resegregate an acceptable blend.
Engineering infographic
Two side-by-side shafts create overlapping working zones
The schematic cross-section distinguishes the two paddle sweeps, the central exchange zone, near-wall regions and the bottom discharge without implying a proprietary geometry.
Engineering infographic
Operating sequence
Conceptual operating sequence for Double-Shaft Mixers; use it to structure an engineering review, not as a fabrication drawing or project-specific design.
Mechanism and material response
Counteracting shafts lift and move material between regions of the vessel. Paddle geometry, speed, spacing and fill determine circulation and local shear. In continuous duty, feed variation and residence time distribution influence outlet composition.
Powder response depends on particle size distribution, shape, cohesion, moisture, hardness and entrained air. The same machine setting can produce a different result after a raw material or environmental change. Representative trials should therefore measure the required product attributes, not only throughput.
Engineering infographic
Advance the batch from measured state to measured state
Mass balance, mixer load, delivered liquid, defined mixing time, representative sampling and recovered mass provide testable gates for the batch sequence.
Engineering inputs
- Component ratios and critical low dose ingredients.
- Particle size, density and cohesion differences.
- Batch size or continuous residence time.
- Required shear and particle protection.
- Liquid addition or agglomeration behavior.
- Discharge completeness and cleaning.
Quality and scale up
A sampling plan should cover time and position. Mixing index alone is not enough unless the sample size and analytical method match the product decision. Trials should include the difficult formulation and expected fill range.
Scale up must preserve the mechanisms that control the result. Useful similarities may include energy per mass, stress frequency, residence time distribution, bed fill, tip speed or vibration acceleration. The relevant measure depends on the process and should be supported by testing.
Engineering infographic
Scale-up variables create coupled benefits and risks
Fill, tip speed, time, spray conditions and discharge geometry affect several outcomes at once, so the scale-up trial must measure uniformity, stress, residue and cycle performance together.
Common risks
- Dead regions at an unsuitable fill level.
- Segregation during discharge.
- Overmixing of a fragile or cohesive formulation.
- Buildup on shafts and seals.
- Feed disturbances in continuous operation.
Monitor speed, load, time, fill and ingredient addition sequence. Continuous systems also need mass flow control and a response to feeder interruption. Product release should follow measured uniformity rather than mixer time alone.
Dust, safety and maintenance
Mechanical energy can release fine dust, heat the product and create ignition sources through impact, friction or damaged bearings. Enclosure, extraction, temperature monitoring, foreign material control and combustible dust protection depend on the material and process assessment.
Guards and energy isolation must prevent access to moving shafts, impact elements and vibrating assemblies. Cleaning and maintenance should address retained material and stored mechanical energy. Wear parts require defined inspection and replacement limits because changing geometry can change the process result.

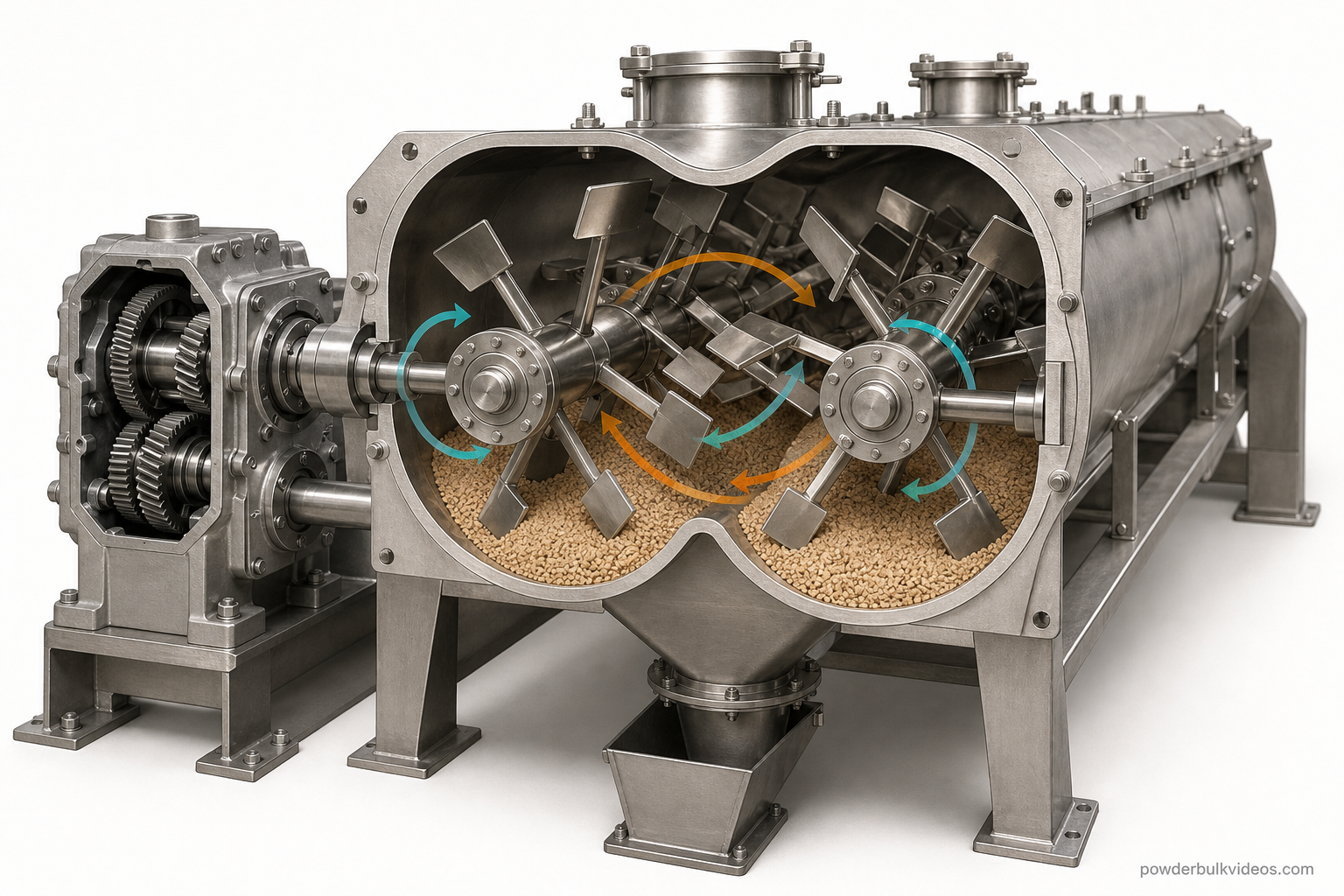

Machine cutaway
Two shafts on one horizontal plane
Conceptual end cutaway of a double-shaft paddle mixer showing two parallel shafts side by side, phase-offset paddles, overlapping working zones and a closed bottom discharge. Paddle geometry, clearances, fill level, drive design and the resulting flow field remain duty- and manufacturer-specific.
Commissioning sequence
- Define the required product distribution or uniformity.
- Characterize feed variability and difficult conditions.
- Establish a stable operating window by representative trials.
- Measure capacity, energy, temperature and product quality together.
- Verify dust control, guarding and abnormal shutdown.
- Record baseline wear and process signatures.
- Set sampling and continued verification requirements.
Sources and further reading
- KONA, Mixing and Segregation in Powders
- Particuology, mixing in a double paddle mixer
- Advanced Powder Technology, tools for particulate mixing research
- KONA, particle size reduction in milling
- KONA, vibration induced densification of bulk solids
- International Journal of Mineral Processing, large scale homogenization
Engineering infographic
Functional zones and interfaces
Conceptual functional zone schematic for Double-Shaft Mixers; use it to structure an engineering review, not as a fabrication drawing or project-specific design.
How to select Double-Shaft Mixers
Partner with powderbulkvideos.com
Place your video in the engineering context buyers are researching.
Use a relevant company profile and technical video to demonstrate this technology before engineers reach the supplier shortlist.
Engineering infographic
Engineering review envelope
Conceptual engineering review envelope for Double-Shaft Mixers; use it to structure an engineering review, not as a fabrication drawing or project-specific design.
Popular on powderbulkvideos.com
Popular Double-Shaft Mixers videos
Supplier discovery
Companies demonstrating Double-Shaft Mixers
Frequently asked questions
How full should a double-shaft mixer be?
The usable fill range must be established for the specific vessel, tool geometry and formulation because low fill can reduce tool engagement while excessive fill can bury the exchange zone and raise torque.
How is mixing time determined?
Mixing time is the earliest repeatable point at which the defined sample plan and assay meet the blend-uniformity criterion without unacceptable attrition, heat or segregation.
Can liquid be added in a double-shaft mixer?
Yes, when nozzle position, spray pattern, droplet size, liquid properties and addition rate wet moving material without local saturation or wall deposits.
How should a double-shaft mixer be scaled up?
Scale-up should compare validated similarity variables and repeat product trials at the larger scale rather than preserving one variable such as tip speed or Froude number by default.
How is blend uniformity proven?
Use a predefined sampling plan with representative locations, sample mass, number of samples, assay method and acceptance statistic, then check discharge as well as the in-vessel blend.
When is a ribbon blender a better alternative?
A ribbon blender deserves evaluation when opposing axial circulation in a simpler single-shaft trough fits the material, working fill range, cleaning requirement and allowable particle stress better than the overlapping paddle zones of a double-shaft design.
