Mixing & Blending Systems: Selection and Design Guide

The mixing step carries the whole recipe’s quality, yet mixers are often bought on price and vessel size. This guide describes a selection path that survives scrutiny: requirements first, machine families second, trials before purchase orders.

Step 1 — Define what "mixed" means

Write the acceptance criterion down: which component is critical, at what sample size, with what allowed variation? A vitamin premix at grams per ton is a different problem from blending two similar flours. Add the batch logic — batch size range, batches per shift, number of recipes, cleaning frequency — because changeover economics eliminate machine families faster than mixing physics do.

Step 2 — Characterize the ingredients

• Fragility: do granules, agglomerates or coated particles break under shear?
• Cohesion and flow: will the blend discharge, or cake in the vessel?
• Segregation tendency: size, density and shape differences between components.
• Liquid addition: sprayed binders, oils or flavors change the machine class.
• Sensitivity: temperature, moisture uptake, abrasiveness, combustibility.

Step 3 — Shortlist by mixing action

Gentle diffusion machines (tumble, conical screw, rotary batch) protect fragile products and give complete discharge; convective machines (ribbon, paddle, plow) mix faster and tolerate cohesive products; mechanically fluidized paddle and plow designs accept liquid addition; high-shear tools exist for agglomerate breakage and dispersion. Continuous twin-shaft or ring-layer mixers serve steady, high-volume single recipes with feeder-controlled accuracy. The technology page for mixing and blending systems describes the families in detail — the shortlist rarely holds more than two or three candidates once steps 1 and 2 are honest.

Step 4 — Trial like you mean it

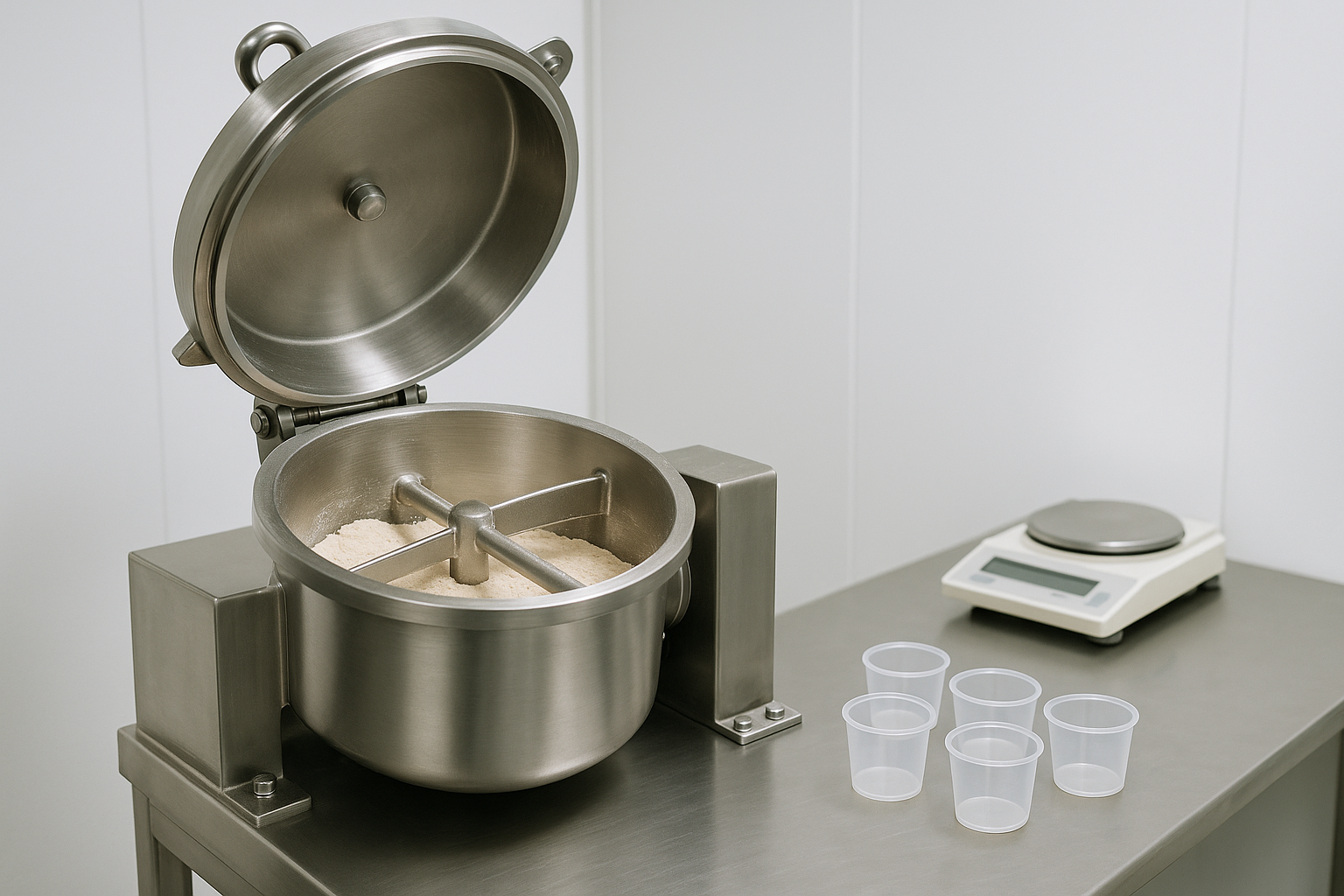

A meaningful trial uses the real recipe at representative fill level, samples across the batch and the discharge, and measures the critical component — not just visual homogeneity. Test the ugly cases: minimum fill, maximum fill, the stickiest recipe variant, and discharge into the real downstream container. Record mixing time to acceptance; it drives the economics more than installed power does.

Step 5 — Design the installation around the mixer

Segregation after the mixer can undo everything before it: keep drops short, use mass-flow hoppers, avoid pneumatic transport of segregating blends where possible. Plan charging order and venting for dust-free filling, discharge valves that empty fully, and access for cleaning and seal inspection. In combustible-dust service, apply ignition-source control, bonding and grounding and an explosion-protection concept per the NFPA 652 framework; in hygienic service, follow hygienic-design practice for internals and seals.

Selection checklist

• Blend acceptance criterion written and agreed?
• Ingredients characterized for fragility, cohesion, segregation, liquids?
• Machine families shortlisted by mixing action, not vendor brochure order?
• Witnessed trial on the real recipe, sampled statistically?
• Changeover and cleaning time measured, not estimated?
• Post-mixer handling checked for re-segregation?
• Dust-safety and hygiene concepts documented?
