Silo Reclaim Systems

The storage vessel and feeder are one flow system

The hopper develops stresses in the bulk solid. The feeder controls how material is removed from the outlet.

If these parts are designed independently, the feeder may draw only from one region, compact the material or leave stagnant zones.

Jenike’s work established a rational design method based on measured flow properties rather than angle of repose alone.

Mass flow and funnel flow

Mass flow

All material moves when any is withdrawn. Material at the walls slides toward the outlet.

Mass flow supports first-in/first-out residence, reduces stagnant inventory and can remix some radial segregation.

It requires sufficiently steep, low-friction hopper walls and an outlet large enough to avoid an arch.

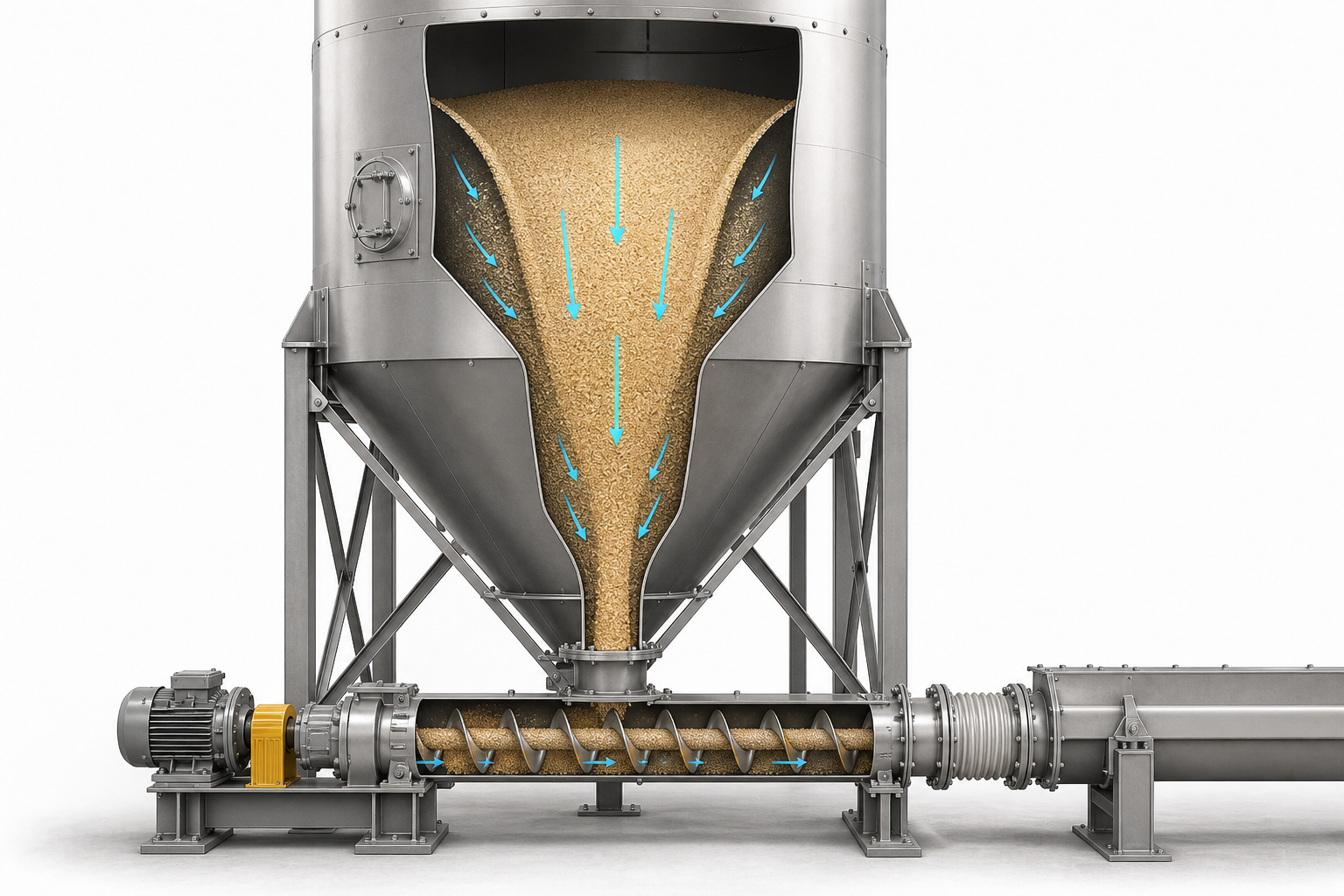

Funnel flow

Material moves through a channel above the outlet while material near the walls remains stationary until the level falls.

This can be acceptable for free-flowing, non-degrading solids when residence time and segregation are not critical.

For cohesive or time-sensitive powder, funnel flow can produce ratholes, erratic discharge, spoilage and structural loads during collapse.

Measure the properties that govern flow

Representative shear testing defines cohesive strength as a function of consolidation.

Wall-friction testing with the actual liner supports hopper-angle selection.

Bulk density over the expected consolidation range affects capacity, loads and feeder power.

Tests should reflect credible moisture, temperature, storage time and particle-size distribution. A dry commissioning sample may not represent a humid product held for a weekend.

Outlet sizing solves different failure modes

An arch spans the outlet and stops flow. A rathole leaves a stable empty channel surrounded by stagnant material.

The required outlet dimension depends on material strength, hopper geometry and the selected flow regime.

Increasing outlet size after fabrication can alter feeder loading and structural details, so flow design belongs early in the silo specification.

Feeder geometry must provide uniform withdrawal

A constant-pitch screw below a long slot tends to fill near its back end and can leave the rest of the outlet inactive.

Mass-flow screws use increasing capacity along the inlet through pitch, diameter or shaft changes.

Belt, apron, vibratory and rotary reclaimers each impose a different pressure and withdrawal pattern at the outlet.

The feeder must start under the expected solids head and survive the maximum load without compacting material against a closed downstream device.

Multiple outlets and live-bottom systems

Several outlets do not guarantee uniform reclaim. Their sequencing can create eccentric flow and asymmetric structural loads.

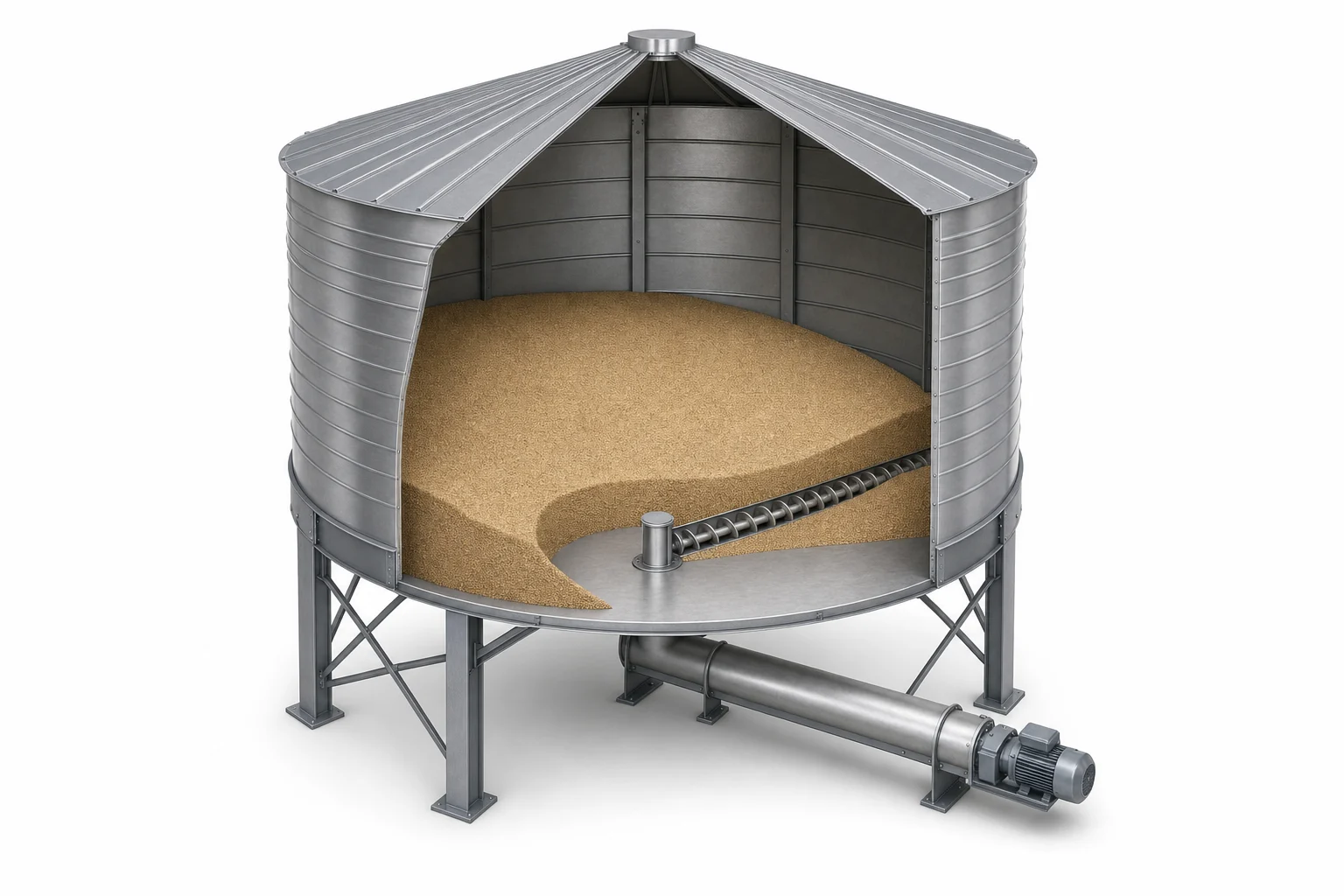

Live-bottom screws or sweep mechanisms can activate a broad floor, but clearances, torque, wear and dead zones need explicit analysis.

For large flat-bottom silos, define whether the machine provides continuous reclaim, final cleanout or both.

Segregation and product quality

Filling can separate particles by size, density or shape. The discharge pattern then determines whether that segregation is preserved, amplified or partially remixed.

A reclaim design should be assessed together with the fill point, drop height and downstream blending requirement.

First-in/first-out performance matters for ingredients that age, absorb moisture or carry lot-traceability constraints.

Aeration and mechanical flow aids

Aeration can reduce apparent friction and promote flow in suitable fine powders.

Too much gas can fluidise the bed, flood the feeder or overload downstream dust collection.

Vibrators and air cannons introduce cyclic loads and may compact some cohesive materials. They should address a diagnosed mechanism rather than compensate for an undersized outlet.

Instrumentation and safe control

Use level measurement suited to dust, geometry and dielectric properties. A high-level switch and a continuous transmitter serve different safeguards.

Monitor feeder speed, motor torque or current, downstream availability and, where useful, silo weight.

Interlocks should prevent filling against a blocked vent and prevent reclaim into unavailable downstream equipment.

Entry into a bridged or ratholed silo is a confined-space and engulfment hazard. Restore flow from outside using an engineered method.

Commissioning and troubleshooting

• Map the flow pattern during controlled drawdown.
• Measure reclaim rate, torque and downstream stability across the operating range.
• Check for wall deposits, inactive outlet zones and segregation.
• Challenge restart after realistic storage consolidation.
• Verify alarms for high level, no flow, overload and blocked venting.

Erratic flow: Look for arch formation, air ingress, feeder starvation and alternating collapse.

High torque: Check solids head, compaction at the feeder outlet, foreign objects, clearances and start sequence.

Old product remains: Confirm the actual flow pattern rather than relying on the vessel’s steep appearance.

Place reclaim inside the broader storage and transportation design, with downstream feeding and dosing sized for the delivered flow regime.
