Deagglomerators & Nibblers

Agglomerates can be weak clusters held by moisture or surface forces, or hard masses created by reaction and compaction. The energy needed to break them differs from the energy needed to fracture primary particles.

Process objective

Define whether the goal is removal of occasional soft lumps, restoration of a powder to its original distribution or deliberate size reduction. The required top size and acceptable fine generation should be measurable.

Mechanism and material response

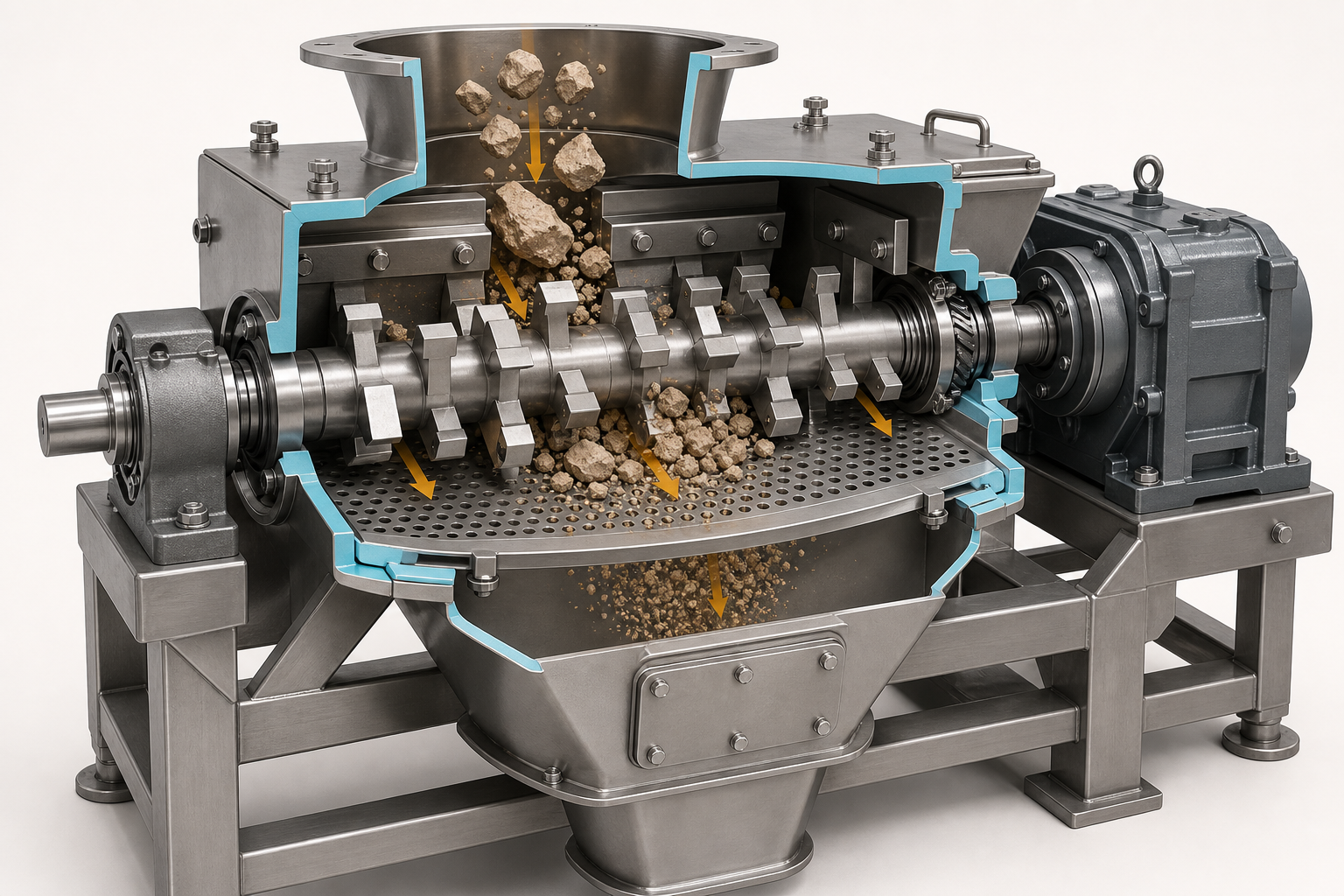

A rotor, cage or toothed element applies impact, compression or shear against another surface. Screen or gap geometry limits the passing size. Residence time is usually short, so feed distribution and prevention of overload are important.

Powder response depends on particle size distribution, shape, cohesion, moisture, hardness and entrained air. The same machine setting can produce a different result after a raw material or environmental change. Representative trials should therefore measure the required product attributes, not only throughput.

Engineering inputs

• Lump size, strength and frequency.
• Primary particle size and friability.
• Required top size and fines limit.
• Feed rate and surge behavior.
• Foreign material and metal control.
• Wear, cleaning and heat sensitivity.

Quality and scale up

Test both typical powder and the hardest credible lump. Measure the complete product distribution, not only the largest particle. Fine generation can change dustiness, flowability and downstream dissolution.

Scale up must preserve the mechanisms that control the result. Useful similarities may include energy per mass, stress frequency, residence time distribution, bed fill, tip speed or vibration acceleration. The relevant measure depends on the process and should be supported by testing.

Common risks

• Hard foreign material damages the rotor.
• Wet product smears across a screen.
• Excess speed creates unwanted fines.
• Uneven feed causes overload.
• Wear changes the effective gap.

Motor load, vibration, temperature and differential pressure can indicate buildup or foreign material. Upstream rate control and protection against oversize objects improve reliability.

Dust, safety and maintenance

Mechanical energy can release fine dust, heat the product and create ignition sources through impact, friction or damaged bearings. Enclosure, extraction, temperature monitoring, foreign material control and combustible dust protection depend on the material and process assessment.

Guards and energy isolation must prevent access to moving shafts, impact elements and vibrating assemblies. Cleaning and maintenance should address retained material and stored mechanical energy. Wear parts require defined inspection and replacement limits because changing geometry can change the process result.

Commissioning sequence

1. Define the required product distribution or uniformity.
2. Characterize feed variability and difficult conditions.
3. Establish a stable operating window by representative trials.
4. Measure capacity, energy, temperature and product quality together.
5. Verify dust control, guarding and abnormal shutdown.
6. Record baseline wear and process signatures.
7. Set sampling and continued verification requirements.
