Technology guide

Loading Spouts

Answer in brief

A loading spout guides dry bulk material into a truck, railcar, ship, container or stockpile while limiting free fall and providing a controlled route for displaced air. Selection depends on material, rate, target geometry, required movement, level tracking, dust control and the consequences of overfilling or vehicle movement.

By Editorial Team · Reviewed July 14, 2026 · Updated July 14, 2026 7 page views

Photorealistic industrial process installation representing Loading Spouts.
The image shows Loading Spouts. It is manufacturer-neutral and does not depict a verified installation or validated performance result.

How Loading Spouts works

A loading spout is the final controlled section between a storage outlet and the receiving destination. Telescopic designs change length as filling progresses. Separate internal paths may carry material downward and displaced air upward toward a filter or extraction connection.

How the operation works

The spout must remain aligned with the receiving opening or material pile. For enclosed loading, the outlet connection helps contain dust while the receiver exhales. For open loading, a skirt or cone can stay near the material surface to reduce drop and wind exposure.

Feed control, spout movement and level detection must be coordinated. A fast gate can overrun the available volume after a high level signal. A spout buried too deeply can plug, while one held too high creates unnecessary free fall and dust.

Engineering inputs

  • Material rate, density, abrasion and dustiness.
  • Receiver opening and maximum fill level.
  • Required vertical and horizontal travel.
  • Enclosed or open loading duty.
  • Level sensing and cutoff response.
  • Extraction route and filter capacity.

Capacity alone is not a sufficient design basis. The system must work across the expected material range, including changes in moisture, fine content, bulk density and particle shape. Startup, normal duty, turndown, interruption and clearing are separate operating cases.

Control of dust and displaced air

EPA and NIOSH evidence identifies drop distance, material dustiness and control of displaced air as important loading factors. Extraction is most effective when the receiving connection is reasonably sealed and clean replacement air has a defined path.

Research on transfer chutes shows that material trajectory and entrained air influence fugitive dust. EPA guidance also treats loading, unloading and storage as distinct emission activities. Effective control therefore begins by reducing uncontrolled drop and air displacement before collection air is added.

Reliability and failure modes

  • Overfilling after delayed cutoff.
  • Spout collision with a moving vehicle.
  • Cable, fabric or cone wear.
  • Plugging after the outlet becomes buried.
  • Dust escape through an unsealed receiver opening.

Inspection should focus on changing conditions rather than waiting for lost capacity. Deposits, wear patterns, damaged seals, changed vibration and rising dust indicate that material flow or containment has moved away from the intended state.

Safety and access

Vehicle restraint or clear movement procedures should prevent departure while connected. Suspended telescopic sections require mechanical integrity and controlled maintenance. Operators should not enter beneath a raised spout or reach into a live material path.

Isolation for maintenance, guarding, safe access and emergency response must be designed into the arrangement. Where combustible dust can occur, ignition control and explosion risk require a separate documented assessment of the complete connected process.

Commissioning and acceptance

  1. Confirm the actual material range and operating cases.
  2. Measure capacity and observe flow at every transfer.
  3. Check dust release, spillage and displaced air under representative duty.
  4. Verify alarms, interlocks and safe shutdown.
  5. Record baseline wear, vibration and inspection points.
  6. Train operators in normal operation, clearing and change control.

Sources and further reading

Engineering visual guide

How the system behaves

These conceptual diagrams connect the operating principle, equipment internals and engineering review points. They are explanatory and not fabrication drawings or a substitute for project-specific calculations.

Operating sequence for Loading Spouts, showing Define duty, Prepare feed, Execute process, Verify result, Transfer onward.

Engineering infographic

Operating sequence

Conceptual operating sequence for Loading Spouts; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

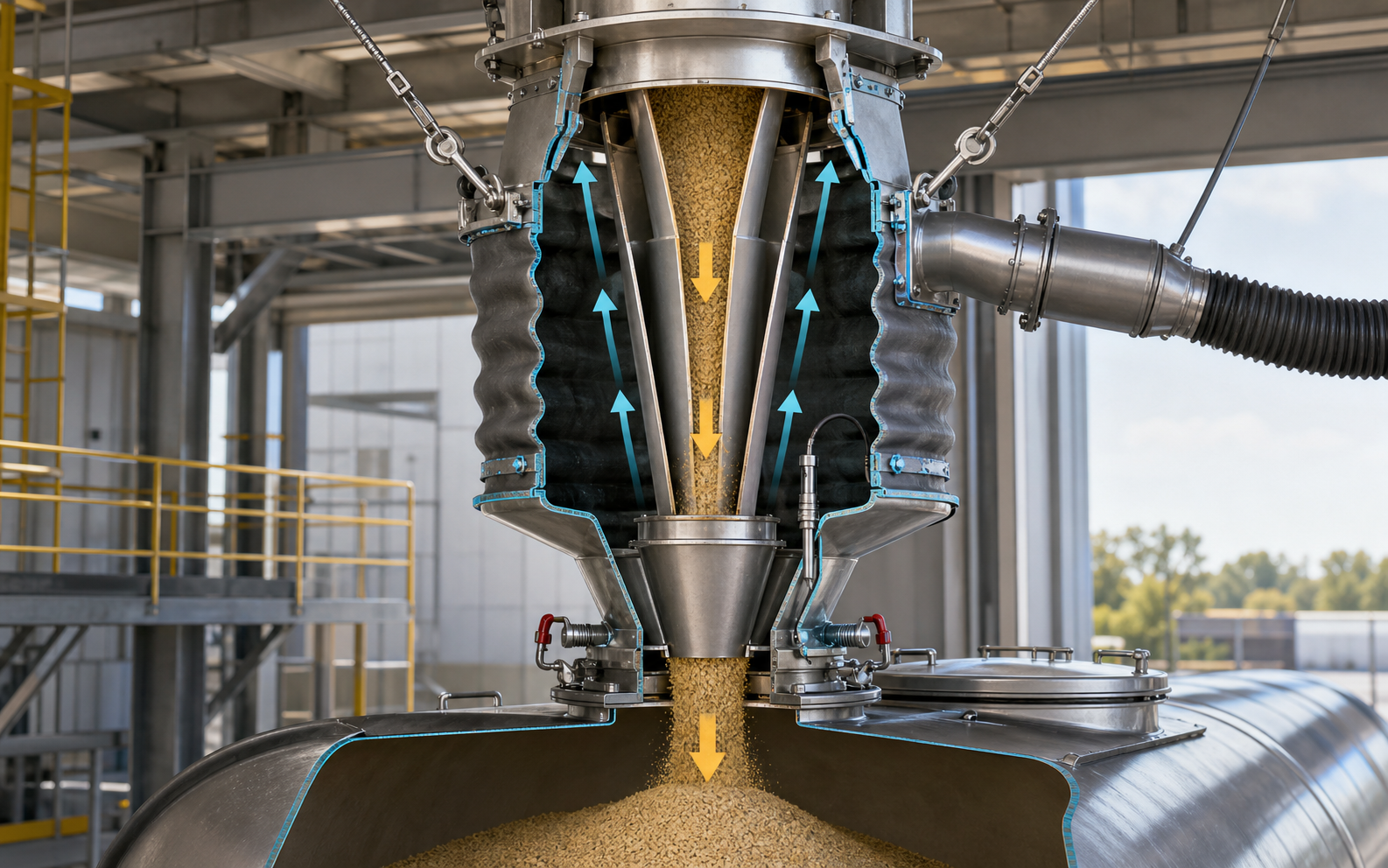

Loading spout section with telescoping inner product path, outer dust sleeve, downward solids flow and upward displaced-air path into extraction.

Cross-section

Separate product and displaced-air paths

A common telescopic loading-spout arrangement keeps the downward product stream separate from the upward displaced-air path. Cone, sleeve, sealing and extraction configurations vary by loading duty.

How to select Loading Spouts

Define the receiving vessel first. Record whether it is open or enclosed, the hatch or loading area dimensions, the required vertical travel and any horizontal positioning tolerance.

Selection inputs

  • Material name and verified flow characteristics.
  • Required loading rate and operating frequency.
  • Truck, railcar, ship, barge or stockpile geometry.
  • Available headroom and extended travel.
  • Open or enclosed loading arrangement.
  • Dust extraction, filtration and displaced air requirements.
  • Level detection and upstream flow control.
  • Inspection, cleaning and wear part access.
Functional zones for Loading Spouts, showing Feed interface, Active zone, Containment, Control point, Discharge.

Engineering infographic

Functional zones and interfaces

Conceptual functional zone schematic for Loading Spouts; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

Engineering review envelope for Loading Spouts, showing Capacity, Material behavior, Energy, Safety, Maintenance, Product quality.

Engineering infographic

Engineering review envelope

Conceptual engineering review envelope for Loading Spouts; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

Popular on powderbulkvideos.com

Popular Loading Spouts videos

View all videos →

Supplier discovery

Companies demonstrating Loading Spouts

Frequently asked questions

How do I choose a loading spout for trucks, railcars or ships

Define the material, loading rate, receiving opening, available headroom, required travel, positioning tolerance and dust containment method. Then verify the complete arrangement with the supplier.

What is the difference between open and enclosed loading

Open loading discharges into an exposed vehicle, ship hold or stockpile. Enclosed loading connects to a defined hatch. The outlet, movement and containment arrangement must suit the receiving geometry.

Why are loading spouts telescopic

Telescoping movement lets the outlet approach the receiving point and retract as the material level rises. Required travel depends on the site layout and vessel geometry.

Does a loading spout need a dust filter

Some applications use filtration, while others rely on a different containment arrangement. The decision depends on displaced air, material behaviour, loading rate and whether the receiver is open or enclosed.
