Building Materials

The building materials sector covers different products, but many plants share a linked solids process. Raw material is extracted or received, reduced to a controlled size, separated, stored, proportioned and converted into a saleable powder, aggregate or mixture.

Cement, lime, clay, gypsum, aggregate and dry mortar do not have one common flowsheet. Their moisture, hardness, chemistry and final grading determine the appropriate route. The first engineering task is to define the product and process boundary.

Define the engineering boundary

A useful design basis starts at every receiving interface and ends only after the finished material is stored, packed or loaded. Record normal and peak mass flow, campaign changes, particle-size and moisture ranges, allowable contamination and the consequence of a stopped downstream unit. The same nominal mineral can behave differently after crushing, drying or grinding, so each material state needs its own representative design case.

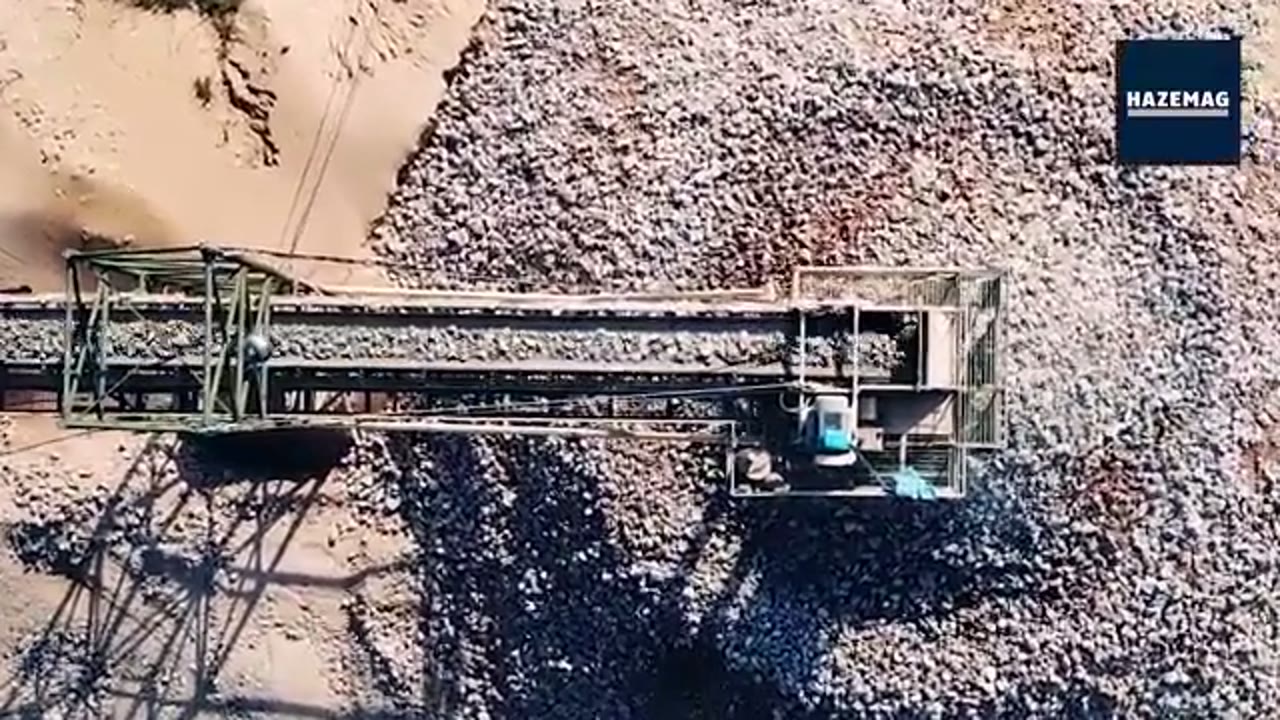

Crushing and screening establish the size distribution for later processing. Grinding and classification create finer products where required. Recirculating loads affect both energy and capacity, so each machine should be evaluated as part of a circuit.

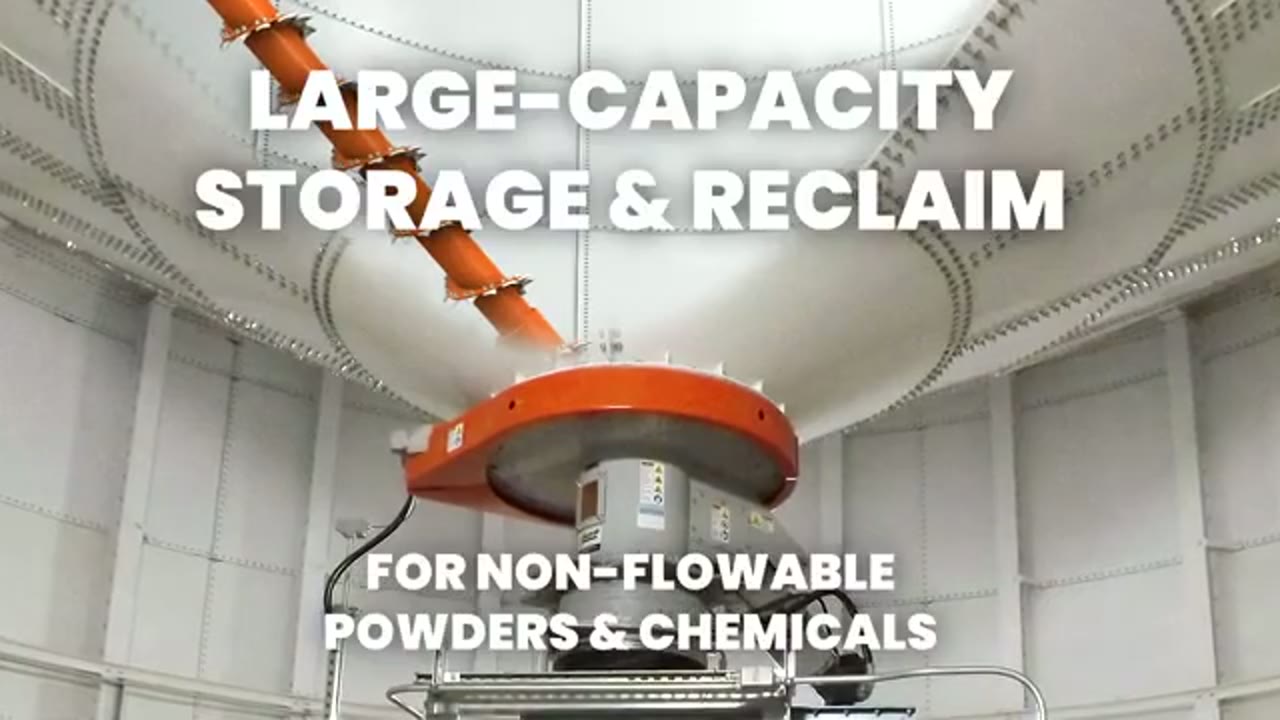

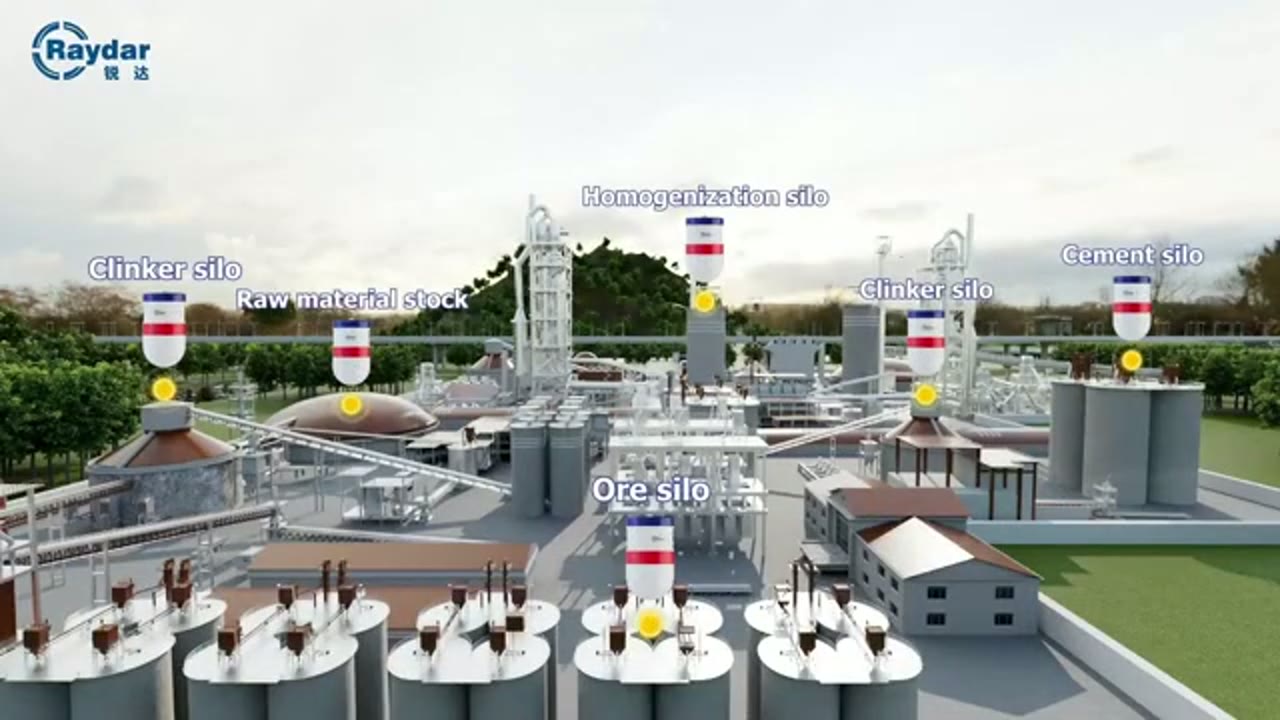

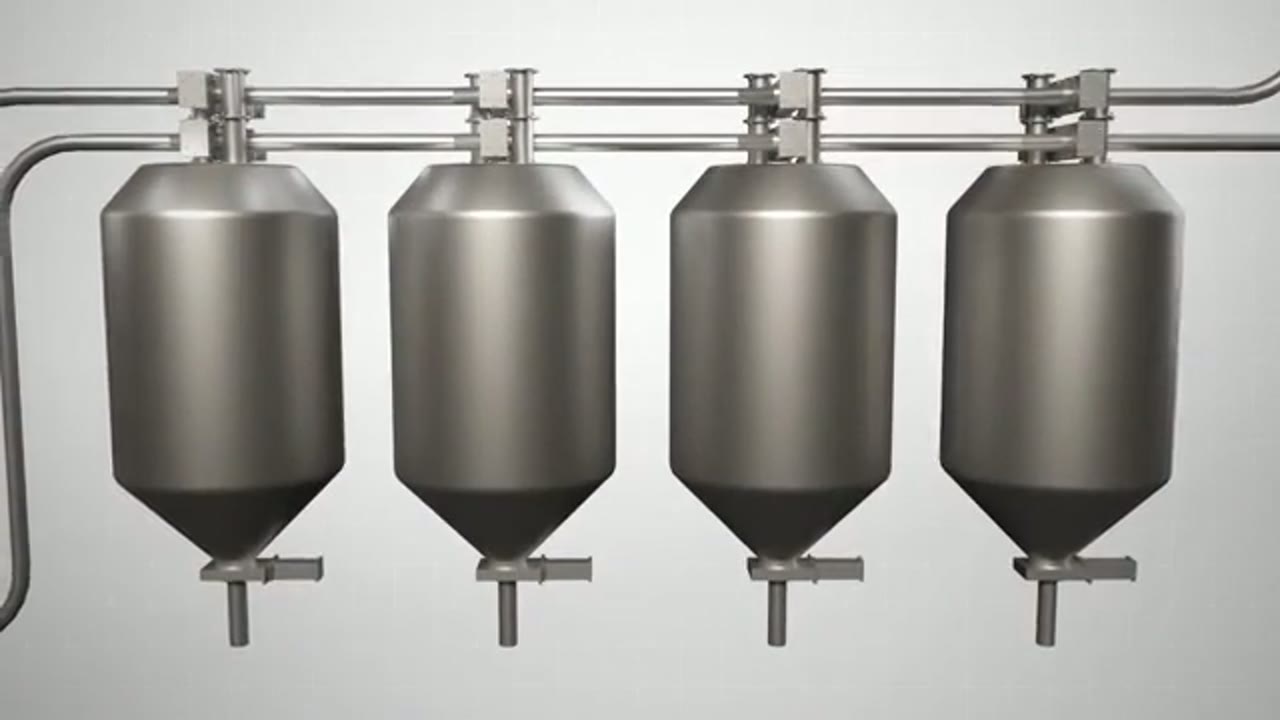

Storage and reclaim must preserve usable inventory and stable feed. Segregation during stockpiling or silo filling can cause variable quality. Poor flow can reduce active volume and disturb dosing. Representative sampling is essential for process control.

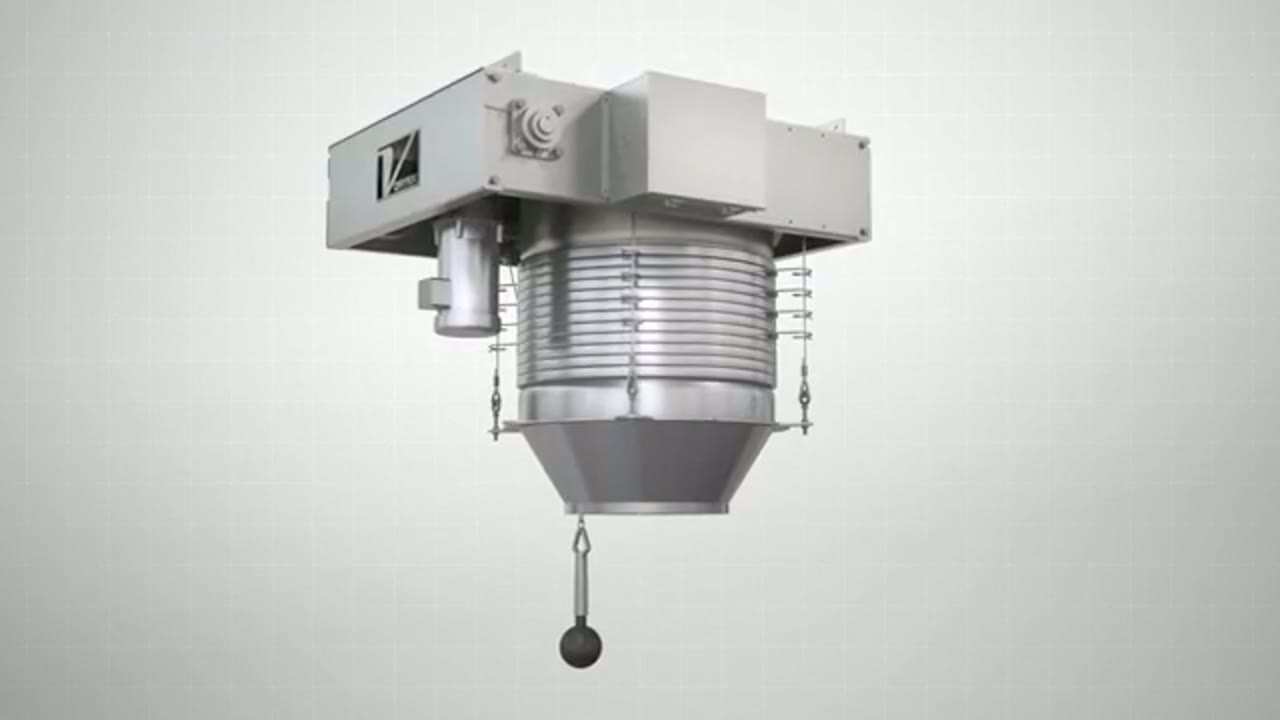

High throughput transfer points require careful chute, belt and loading design. Spillage, wear and dust usually indicate an interface problem, not only a housekeeping problem.

Engineer the interfaces, not only the machines

A crusher, screen, mill, silo, feeder and conveyor can each meet its isolated duty while the complete line remains unstable. Map surge capacity, minimum and maximum inventories, permissives, trip states and restart sequence. At transfer points, control both the material trajectory and displaced air. Extraction that is too weak releases dust; excessive extraction can entrain saleable fines and upset the connected filter. Storage and reclaim design must align hopper geometry, outlet size and the feeder below it so that stable flow is available across the agreed material envelope.

Abrasive feed wears liners, conveyors, valves and bends. Wear changes clearances and can alter product size or flow. Moist clay and gypsum can adhere to surfaces, while dry cement and mineral fines readily become airborne.

Bulk density, top size and moisture can vary sharply between quarry conditions and finished product. Equipment trials and calculations should use the full expected range.

Translate variability into design cases

For abrasive minerals, identify velocity, impact angle, sliding distance and replaceable wear zones. A thicker liner is not a complete strategy if it changes geometry or hides damage. Moist or cohesive feed may reveal a developing blockage through rising drive load, unstable output, inventory imbalance or pressure drop before flow stops. The control plan should define when to hold feed, empty safely and investigate rather than repeatedly restarting into packed equipment.

Product contamination may come from wear material, previous recipes, lubricants or environmental ingress. Dry mix and specialty products need controlled ingredient identity and clean changeover. Access design should permit inspection without exposing workers to unstable inventory or moving machinery.

Dust capture should be integrated at crushers, screens, mills, silos, transfer points and packing stations. Filters need suitable air volume, cleaning, discharge and condition monitoring.

Key risks include moving conveyors and crushers, stored energy, unstable material, hot surfaces, noise, respirable dust and vehicle interaction. Silos and hoppers also introduce confined space and engulfment hazards.

Combustibility cannot be assumed from the industry label. Organic additives, fuels and some fine materials need specific assessment. Isolation and safe maintenance should cover the complete connected process.

Design abnormal operation and maintenance access

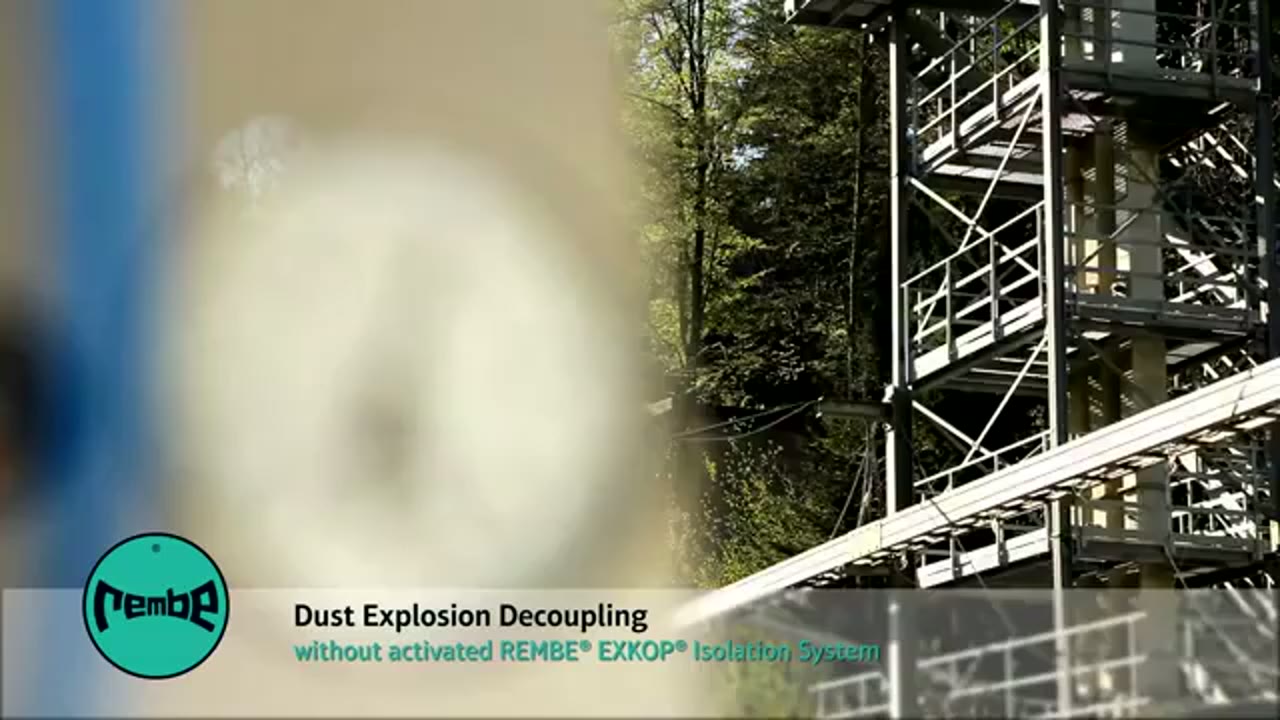

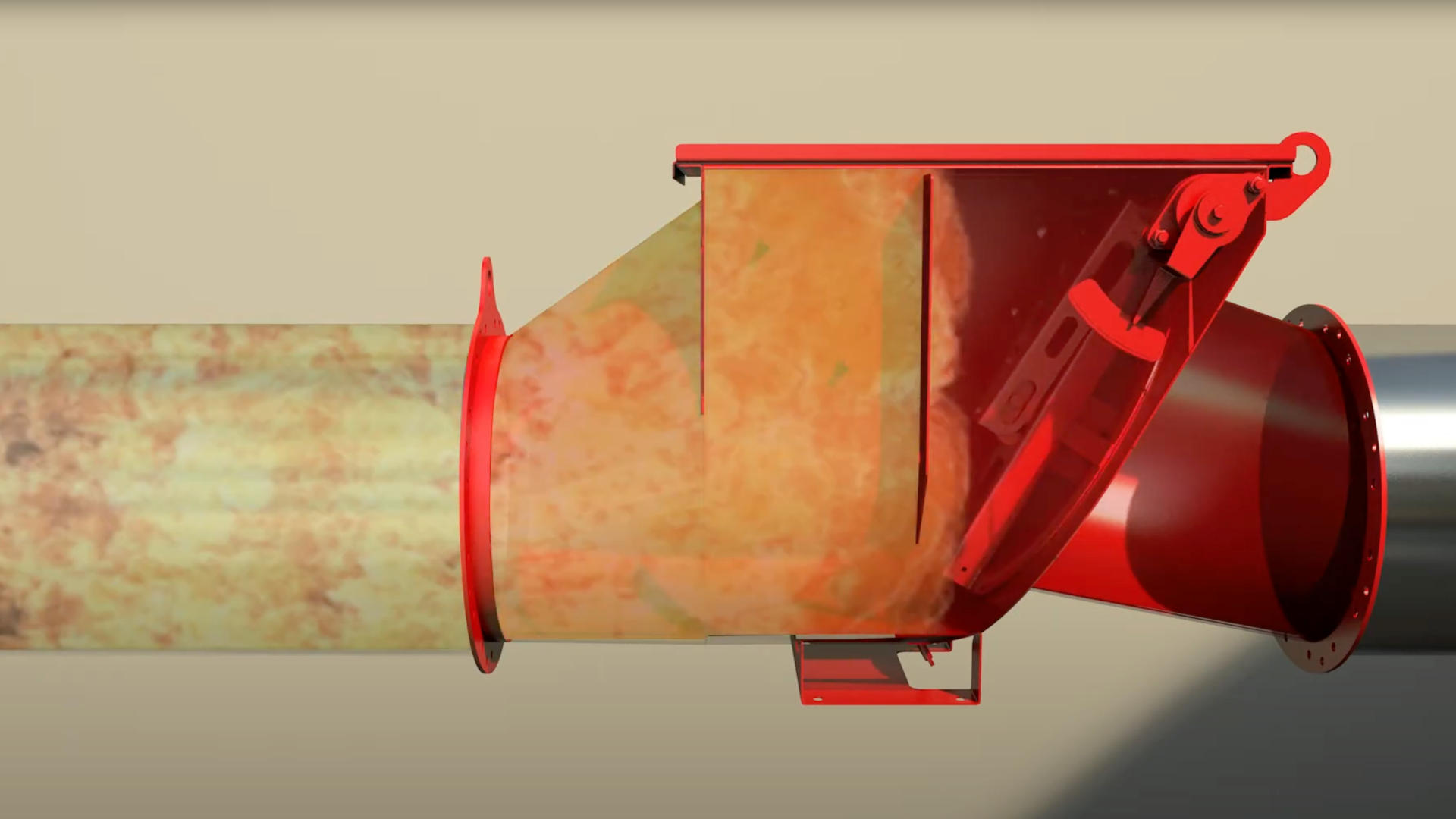

Every credible intervention needs an isolation boundary, verification of zero energy and a safe method for removing retained material. Guards and platforms should support routine inspection without work near moving belts, shafts or unstable inventory. Distinguish nuisance dust, occupational exposure and combustible dust. Material test data, ignition sources and connected volumes determine whether prevention, venting, suppression or isolation is required for the complete process.

Environmental and occupational requirements depend on material and location. The United States EPA AP 42 mineral products chapter describes particulate emission sources across cement, aggregate, clay and related processes. Current permits and local rules determine actual limits and monitoring duties.

Specifications for aggregates, cement and finished mixtures also influence process control. Commissioning should link operating settings to measured particle distribution, chemistry, moisture and other relevant product criteria.

Commission against measurable criteria

Acceptance should cover throughput across the agreed material range, product quality, dust containment, power and pressure trends, alarms, trips, restart behaviour and maintainability. State feed condition, test duration, sampling method and allowable deviation in advance. Retain clean pressure drops, instrument ranges, wear measurements and representative product results as the baseline for later maintenance and change control.

Sources and further reading

• US EPA, AP 42 Mineral Products Industry
• US EPA, Portland Cement Manufacturing
• US EPA, Concrete Batching
• US EPA, Fabric Filters and Baghouses
