Industrial Feeders

Feeders regulate solids flow. They are not merely short conveyors below a bin. Their action changes the stress and velocity at the outlet, which determines whether the full opening becomes active or a narrow flow channel develops.

Function in the process

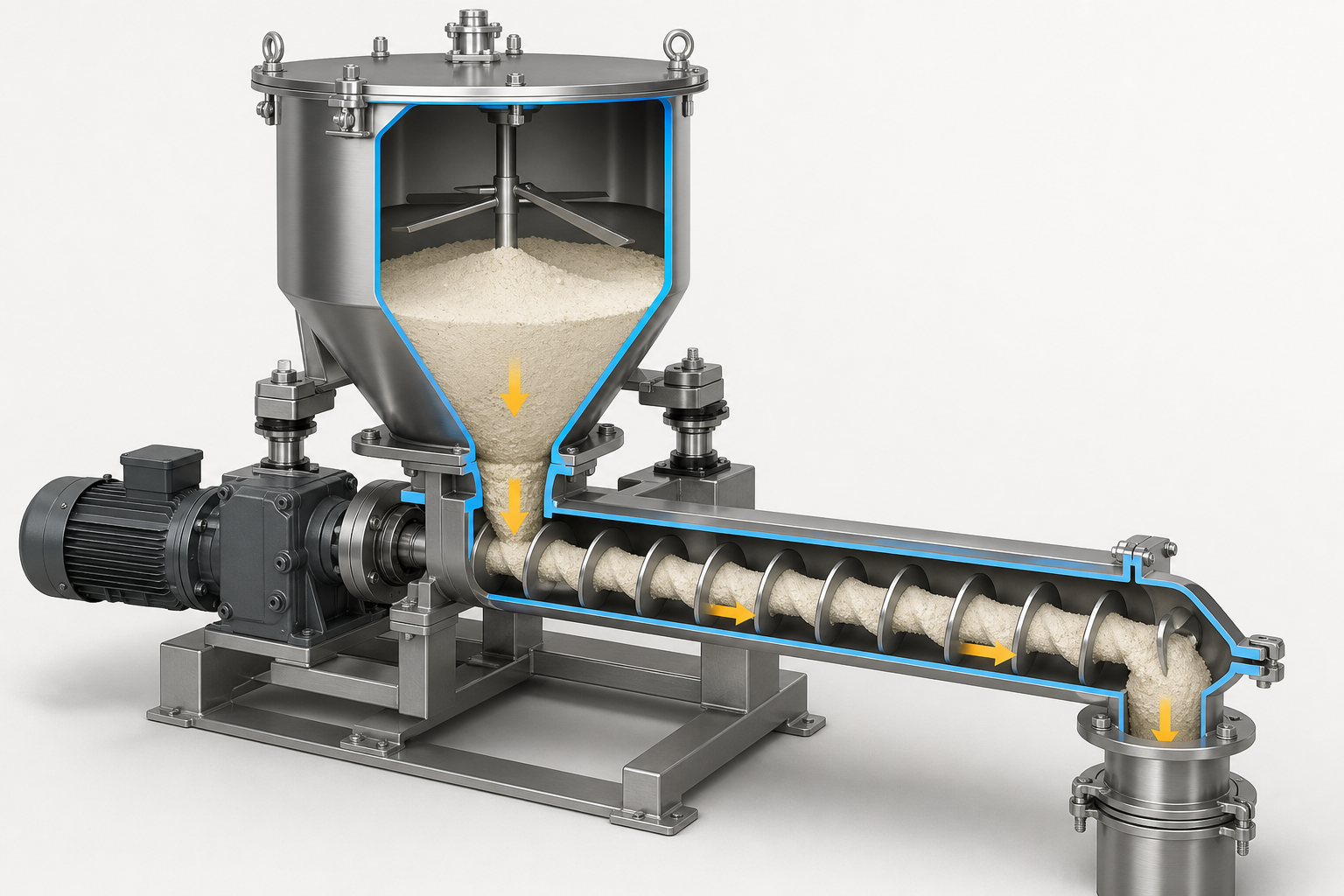

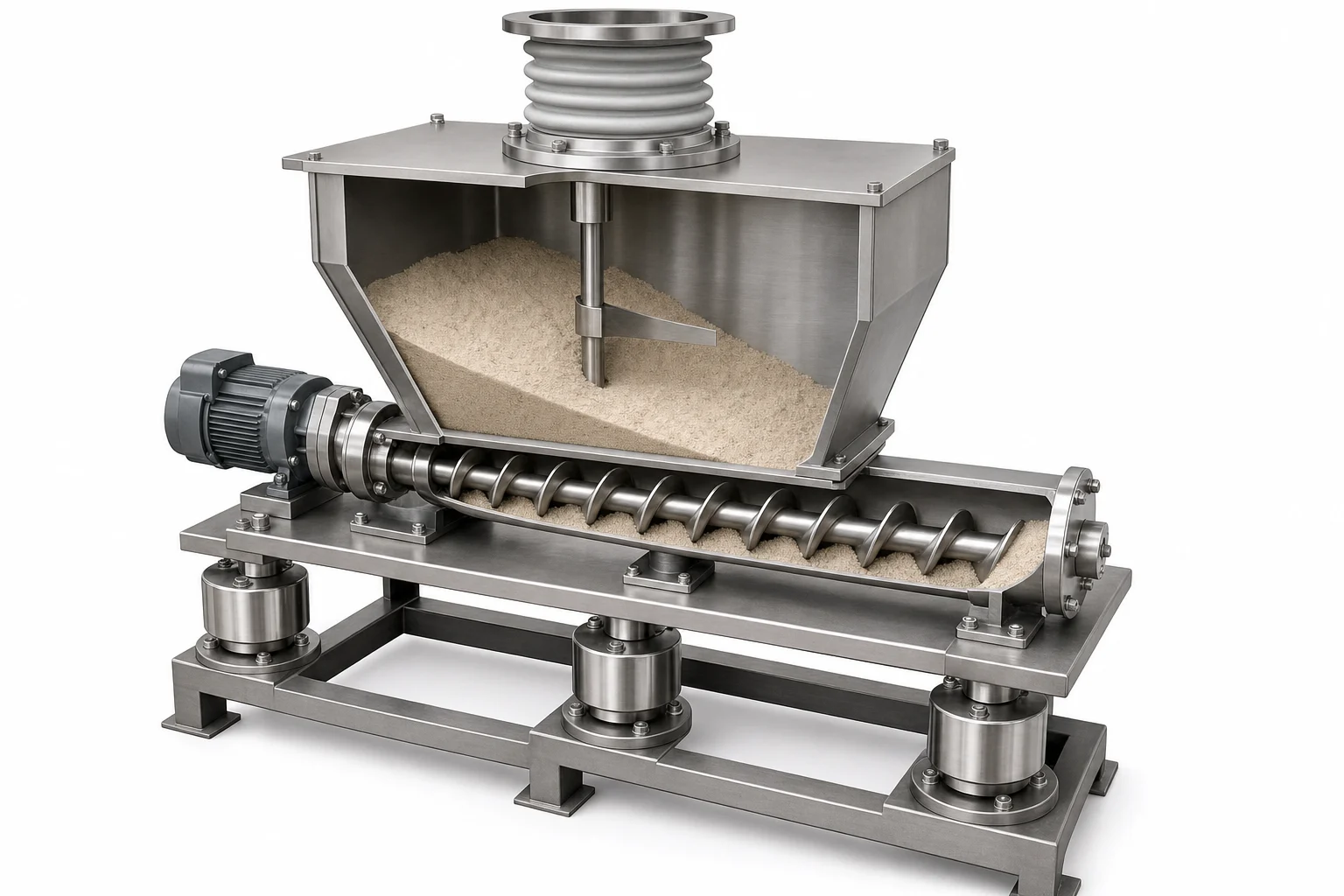

Screw, belt, vibratory, rotary and other feeders create flow through different mechanisms. Volumetric operation relates speed to assumed delivered volume. Gravimetric operation measures mass flow or weight loss and adjusts the device to correct deviation.

The feeder receives variable stress from the stored material and delivers into equipment that may impose pressure, suction or a fluctuating demand. Both boundaries influence torque, fill and accuracy.

Material behavior comes first

Bulk solids do not behave like liquids. Cohesion, wall friction, compressibility, permeability, particle shape, moisture and storage time influence whether material reaches the device and how it passes through. Research on food powders shows that particle size and bulk density alone cannot reliably predict flow or wall friction. Representative flow testing is therefore important when failure has serious consequences.

Engineering inputs

• Minimum, normal and maximum mass rate.
• Cohesion, wall friction and compressibility.
• Bin outlet dimensions and required drawdown pattern.
• Turndown, refill and batch accuracy.
• Downstream pressure or vacuum.
• Cleaning, hygiene and access.

The upstream bin, outlet and downstream equipment must be designed with the device. A feeder cannot correct a hopper that forms a stable arch. A shutoff gate cannot control flow reliably when it is used as a metering device. A pressure boundary cannot be assumed from the equipment name.

Capacity and control

Volumetric capacity changes when bulk density or fill changes. Gravimetric control can correct average rate, but refill disturbance, bridging or poor screw fill can still create short deviations. The required averaging period must follow the process need.

Controls should distinguish commanded position or speed from actual process performance. Position feedback, motor load, mass flow, weight change or downstream pressure can reveal different failure modes. The useful signal depends on the duty.

Common failure modes

• Arching or ratholing above the feeder.
• Uneven drawdown across a long outlet.
• Flooding of an aerated powder.
• Torque overload after storage consolidation.
• Rate error caused by density or refill change.

Inspection should establish baseline leakage, wear, torque, noise and cycle time. A trend away from that baseline can identify deterioration before capacity is lost or a seal fails.

Safety and maintenance

Access to screws, belts and vibrating parts must be prevented during operation. Isolation must address the drive and the stored material above it. A closed upstream gate should not be treated as proof that the hopper is empty.

Moving rotors, blades and actuators require guarding and energy isolation. Stored bulk material can move after a drive stops. Pressure, vacuum and combustible dust hazards must be included in the safe work method for opening or removing the device.

Selection and acceptance sequence

1. Define the material range and process duty.
2. Confirm bin flow and outlet geometry.
3. Set capacity, pressure and leakage requirements.
4. Review wear, cleaning and contamination risks.
5. Select instrumentation and failure response.
6. Test the complete interface under representative conditions.
7. Document maintenance limits and spare parts.
