Technology guide

Dust Collection & Air Pollution Control

Answer in brief

A dust-collection system captures contaminated air at the point of release, transports it through ductwork, separates particles from the air and discharges or returns the cleaned air under controlled conditions. Good performance depends more on capture, transport and safe discharge than on filter area alone.

Reviewed July 13, 2026 · Updated July 26, 2026 32 page views

Industrial dust collection system with filter housing, ducting and collection hopper
The image shows Industrial dust collection system with filter housing, ducting and collection hopper.

Start at the release point

A collector cannot recover dust that never reaches the hood.

HSE guidance treats local exhaust ventilation as a complete system: hood, duct, air cleaner, air mover and discharge. Each part must work at the design airflow while the process is operating.

Enclose the source as far as the process allows. A close-fitting receiving hood generally needs less air and is less sensitive to cross-drafts than a canopy positioned far above a dusty transfer.

Capture airflow is not conveying airflow

The hood needs enough induced velocity to draw the contaminant into the system.

The duct then needs enough transport velocity to keep the collected solids moving. If velocity is too low, deposits accumulate.

If velocity is unnecessarily high, pressure loss, abrasion, noise and fan power increase.

Branches should be balanced for the operating combinations that actually occur. Closing one branch can move the fan operating point and change capture elsewhere.

Fabric filters separate dust at the surface

In a baghouse or cartridge collector, the filter medium and deposited dust cake capture particles while gas passes through.

Pressure drop rises as the cake develops. Pulse-jet or other cleaning removes part of the cake so airflow can continue.

EPA guidance notes that fabric filters can achieve high particulate collection efficiency, but performance depends on fabric selection, temperature, moisture, chemical compatibility and cleaning.

Engineering infographic

Operating sequence

Conceptual operating sequence for Dust Collection & Air Pollution Control; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

Size the collector for the real gas stream

Air-to-cloth ratio is useful, but it is not a universal design number.

Fine cohesive dust, high inlet loading or difficult cake release may require a lower filtration velocity than a free-releasing granular dust.

Check gas temperature against the medium and seals. Condensation can blind filters and create corrosion or sticky deposits.

Hot particles may ignite the collected dust.

Inlet design should distribute loading rather than erode one bank of elements. The hopper below the filter is temporary storage, not a bin for indefinite accumulation.

Combustible dust changes the safety architecture

A collector concentrates fine particles and frequently contains an ignitable atmosphere. That makes it a credible explosion location, not merely an environmental-control device.

OSHA and CSB investigations repeatedly identify hazardous dust accumulations, ignition sources, deficient collectors and propagation through connected equipment as major accident factors.

Hazard analysis should address prevention, pressure relief or suppression, explosion isolation, safe vent discharge, grounding and housekeeping.

Do not place an indoor collector or return filtered air to an occupied room without a documented basis for fire, explosion, toxic exposure and secondary-containment risks.

Discharge equipment must match the collected dust

A hopper that bridges allows dust to reach the filter elements and shortens useful cleaning cycles.

Rotary valves, screws or double-dump valves must handle the expected dust without becoming an unverified pressure or explosion-isolation device.

When dust returns to production, quality and cross-contamination controls are as important as airflow.

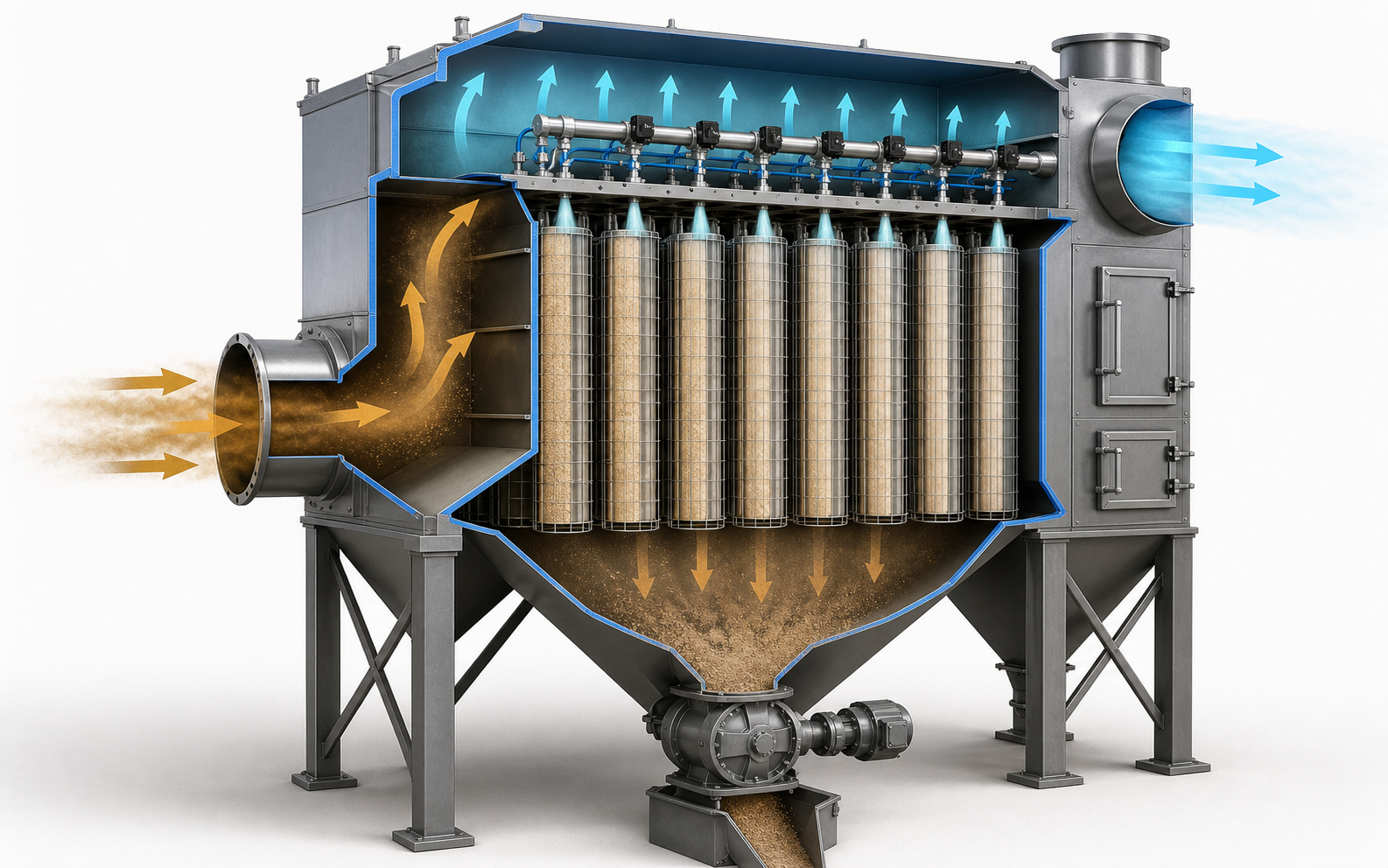

Machine cutaway

Dirty side, clean side and dust discharge

Conceptual pulse-jet baghouse section showing dirty-air entry, external filter-cake collection, the clean-air plenum and hopper discharge. Filter geometry and cleaning details must be verified for the selected collector.

Monitoring that operators can act on

Differential pressure is a primary indicator of filter condition, but it needs context.

Low pressure drop can mean clean filters, a broken element, an open bypass or inadequate airflow. High pressure drop can indicate overloading, failed cleaning, moisture or blinded media.

Useful monitoring includes airflow or duct pressure at critical hoods, fan status, cleaning-air pressure, hopper level and broken-bag detection where the consequence warrants it.

Commissioning proves control at the process

  • Measure airflow and static pressure at each hood and branch in credible operating combinations.
  • Observe smoke or another safe tracer around the source to confirm capture direction.
  • Record clean and stabilized filter pressure drop as maintenance baselines.
  • Verify dust discharge, alarms, interlocks and safe shutdown on fan or cleaning failure.
  • Inspect duct access, deposits, erosion zones and isolation devices.
  • Confirm worker exposure and emissions against the applicable limits and permit conditions.

Troubleshooting by symptom

Dust escapes the hood: Check enclosure openings, cross-drafts, process displacement air, branch balance and fan performance before increasing fan speed.

Pressure drop climbs quickly: Check moisture, cleaning pressure, valve timing, element installation, excessive inlet loading and hopper discharge.

Dust appears downstream: Inspect elements, seals, tube-sheet interfaces and bypass paths. Do not treat a normal pressure-drop reading as proof of integrity.

Cleaning floors and equipment is a separate task. Use a suitably specified industrial vacuum-cleaning system rather than compressed-air blowdown that redistributes dust.

Engineering infographic

Functional zones and interfaces

Conceptual functional zone schematic for Dust Collection & Air Pollution Control; use it to structure an engineering review, not as a fabrication drawing or project-specific design.

How to select Dust Collection & Air Pollution Control

Specify the system from source enclosure, contaminant hazard, required capture, duct transport, gas conditions and discharge route. Validate the complete operating envelope at the hood, not only the collector nameplate.
